MRM-K4R50 Caliper Gauge

MRM-K4R50 Electronic External Caliper Gauge (0 to 50) mm

CAD 939.00

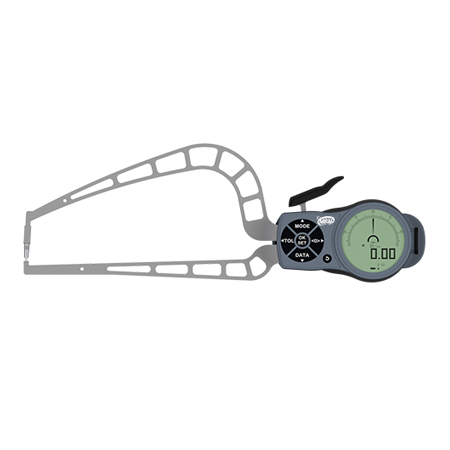

The MRM-K4R50 Electronic External Caliper Gauge use spring-loaded jaws to provide consistent point contact pressure for exceptionally precise hole diameter, groove, and tube thickness comparison measurements. It is a versatile measuring tool that can be used to measure a variety of distances and interior dimensions. IP67 protection prevents dust penetration and protects against temporary water immersion and allows usage in situations with cutting oil, dust, and other contaminants. Measurements are displayed on a simple LCD panel.

It comes with a two-year manufacturer’s warranty.
Shop for MRM-K4R50 Digital Caliper Gauge at MRM Metrology, and save.
Buy MRM-K4R50 Caliper Gauge now for the best price.

Email us for the lowest price. Click on [email protected] to request a quotation.

Other Models

SKU: MRM-K4R50 Category:

Product Description

  • Features
  • Specifications
  • Dimension
  • Accessories
  • Downloads
  • Calibration

○ Internal measurement

Measuring Range (0 to 50) mm
Resolution (0.01 , 0.02 , 0.05) mm
Accuracy ± 0.05 mm
Measuring Span Mes 50 mm
Range of Indication Azb (0 to 50.5) mm
Repeatability Limit R 0.03 mm
Measuring Force F min. 0.8 N
Measuring Force F max. 1.7 N
Type of Measuring Contact Movable HM-Ball Ø 1.0 mm
Measuring Contact Movable Hb 4.4 mm
Type of Measuring Contact Fixed HM-Ball Ø 3 mm
Measuring Contact Fixed Hf 4.3 mm
Measuring Contact Thickness Max. 1.5 mm
Measuring Depth Max. L 169 mm
Weight 460 g
Reference Temperature 20°C / (-10 to 30)°C
Storage Temperature (-10 to 50)°C
Protection Class IP67
Warranty Two years limited manufacturer’s warranty

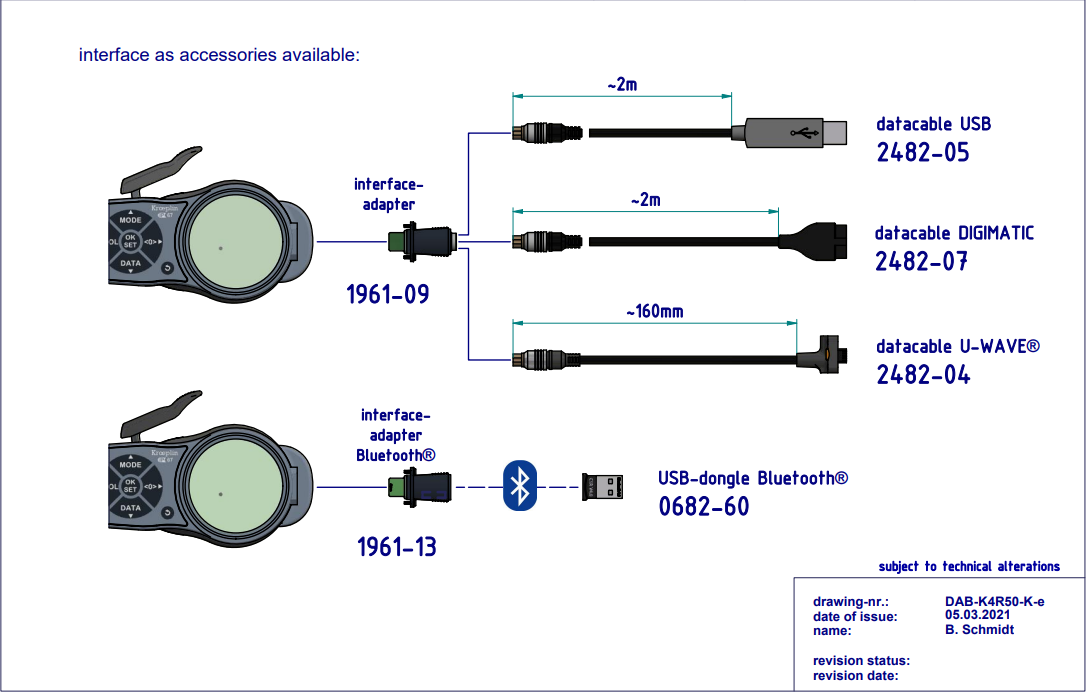

209-955


Interface Bluetooth Order no. 1961-13
Interface Digimatic Order no. 1961-09 + 2482-07
Interface USB Order no. 1961-09 + 2482-05
Interface U-Wave Order no. 1961-09 + 2482-04 + 2482-01 + 2482-02
Wooden Box Order no. 1732-71
Holding Unit Order no. 8007-10

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc. ○ Use CAL MRM-K4R50 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the MRM-K4R50 Electronic External Caliper Gauge

For a quote, please email us at  [email protected]
