| â—‹ Internal measurement |
| Range | (300 to 430) mm |
| Graduation | 0.15 mm |
| Accuracy | 0.15 mm” |
| Range of Indication Azb | (299.5 to 430.5 ) mm |
| Repeatability Limit R | 0.05 mm |
| Measuring Force F min. | 0.9 N |
| Measuring Force F max. | 9 N |
| Type of Measuring Contact Movable | HM-Ball Ø 2 mm |
| Measuring Contact Movable Hb | 8.5 mm |
| Type of Measuring Contact Fixed | HM-Ball Ø 2 mm |
| Type of Measuring Contact Fixed Hf | 8.5 mm |
| Measuring Contact Thickness Max | 9 mm |
| Measuring Depth Max. L | 192 mm |
| Weight | 355 g |
| Reference Temperature | 20°C / (-10 to 30)°C |
| Storage Temperature | (-10 to 50)°C |
| Protection Class | IP65 |
| Manufacturer’s Warranty | Two years limited manufacturer’s warranty |
â—‹ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
â—‹ Use CAL MRM-H4M300 when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

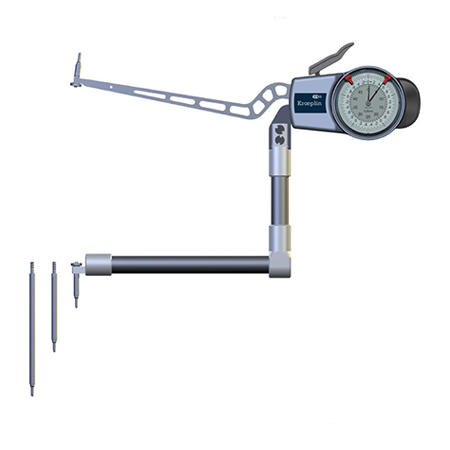

MRM-H4M300 Internal Dial Caliper Gauge
For a quote, please email us at  [email protected]
