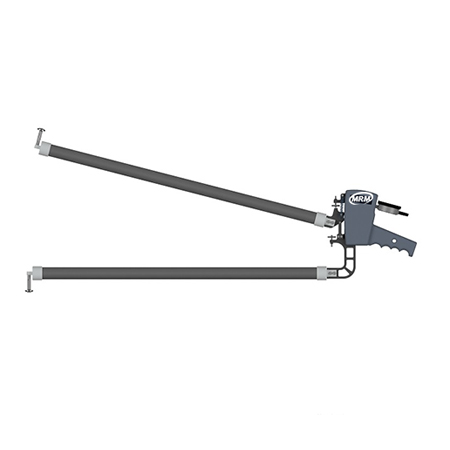

MRM-H16200 Internal Dial Caliper Gauge (200 to 400) mm

CAD 1,779.00

The MRM-H16200 Internal Dial Caliper Gauge is used for Internal measurements.
The dial display provides precise, readable measurements.

It comes with a two-year manufacturer’s warranty.
Shop for MRM-H16200 Dial Caliper Gauge at MRM Metrology, and save.
Buy MRM-H16200 Caliper Gauge now for the best price in Canada.

Email us for the lowest price.
Click on [email protected] to request a quotation.

Other Models

SKU: MRM-H16200 Category:

Product Description

  • Features
  • Specifications
  • Dimension
  • Accessories
  • Downloads
  • Calibration

○ Internal measurement

Range (200 to 400) mm
Graduation 0.1 mm
Accuracy 0.1 mm”
Range of Indication Azb (199 to 401) mm
Repeatability Limit R 0.2 mm
Measuring Force F min. 0.7 N
Measuring Force F max. 5 N
Type of Measuring Contact Movable Hemisphere SR 20 mm
Measuring Contact Movable Hb 13 mm
Type of Measuring Contact Fixed Hemisphere SR 20 mm
Type of Measuring Contact Fixed Hf 29.5 mm
Measuring Contact Thickness Max 5.2 mm
Measuring Depth Max. L 746 mm
Weight 1300 g
Reference Temperature 20°C / (-10 to 30)°C
Storage Temperature (-10 to 50)°C
Protection Class IP65
Manufacturer’s Warranty Two years limited manufacturer’s warranty


○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL MRM-H16200 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
MRM-H16200 Internal Dial Caliper Gauge

For a quote, please email us at  [email protected]
