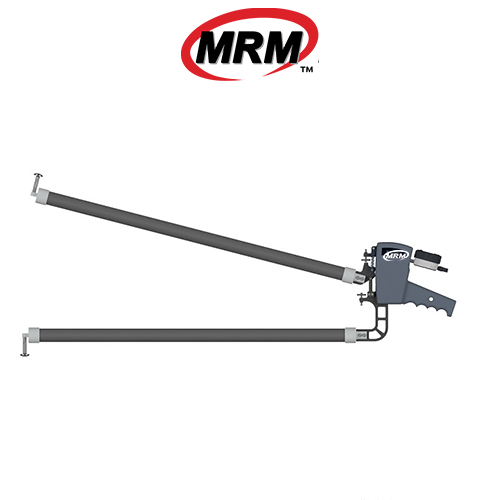

MRM-G16200 Caliper Gauge

MRM-G16200 Electronic Internal Caliper Gauge (200 to 400) mm

CAD 2,345.00

The MRM-G16200 Electronic Internal Caliper Gauge is used internal measurement.
It is used for measuring the thickness of foams and foils.

It comes with a two-year manufacturer’s warranty.
Shop for MRM-G16200 Digital Caliper Gauge at MRM Metrology, and save.
Buy MRM-G16200 Caliper Gauge now for the best price in Canada.

Email us for the lowest price.
Click on [email protected] to request a quotation.

Other Models
SKU: MRM-G16200 Category:

Product Description

  • Features
  • Specifications

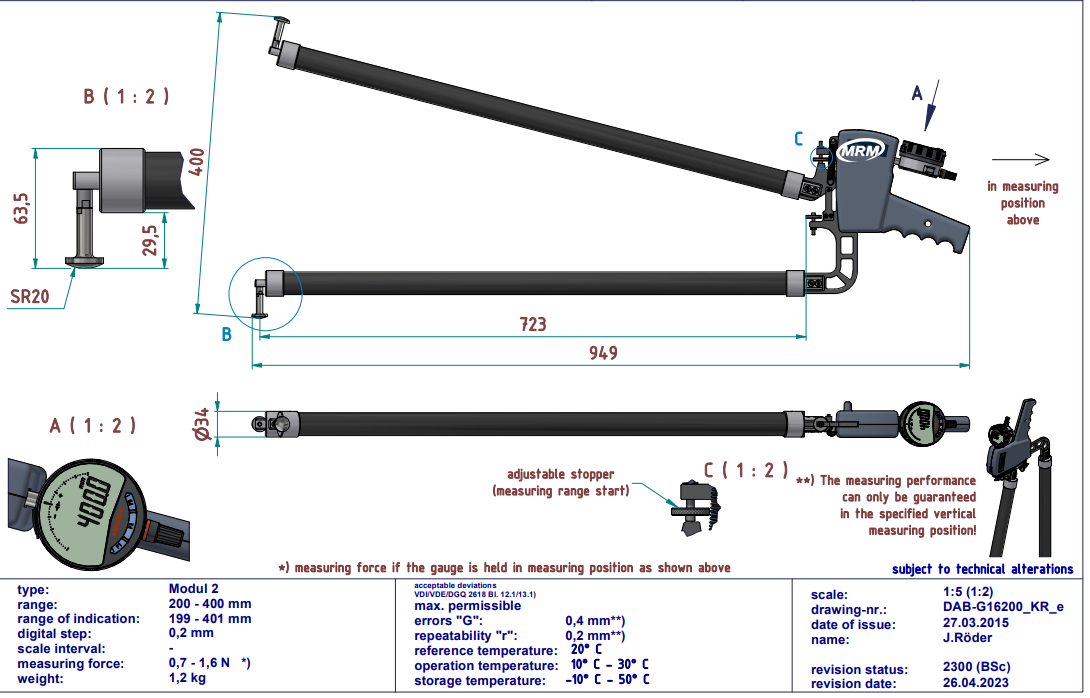

  • Dimension
  • Accessories
  • Downloads
  • Calibration

○ Measurement of foams and foils

Range (200 to 400) mm
Resolution 0.2 mm
Accuracy ± 0.15 mm
Repeatability Limit R 0.1 mm
Measuring Force F min. 0.7 N
Type of Measuring Contact Movable Hemisphere SR 20 mm
Measuring Contact Movable Hb 85 mm
Type of Measuring Contact Fixed Hemisphere SR 20 mm
Measuring Contact Fixed Hf 7 mm
Measuring Depth Max. L 746 mm
Weight 1200 g
Reference Temperature 20°C / (-10 to 30)°C
Storage Temperature (-10 to 50)°C
Protection Class IP67
Warranty Two years limited manufacturer’s warranty


Interface Digimatic 1961-09 + 2482-07
Interface USB 1961-09 + 2482-05
Interface U-Wave 1961-09 + 2482-04 + 2482-01 + 2482-02
Wooden Box HK
Holding Unit 8007-10

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL MRM-G16200 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
MRM-G16200 Electronic Caliper Gauge

For a quote, please email us at  [email protected]
