| â—‹ Indicator should be used in conjunction with a setting ring or micrometer |
| â—‹ White dial face for easier, precise measurement readings |
| â—‹ Crystal is glare-free with a scratch-resistant coating |
| â—‹ IP65 Rating resists dusts and liquid penetration up to the force of a low-pressure water jet |
| â—‹ Supplied in a fitted plastic case |
| Range | (0 to 0.8)” |
| Accuracy | 0.0005″ |
| Range of Indication Azb | (0 to 0.82)” |
| Graduation | 0.0015″ |
| Repeatability Limit R | 0.0005″ |
| Measuring Force F min. | 1.1 N |
| Measuring Force F max. | 1.6 N |
| Type of Measuring Contact Movable | HM-Ball Ø 0.06″ |
| Measuring Contact Movable Hb | 0.97″ |
| Type of Measuring Contact Fixed | HM-Ball Ø .06 inch |
| Measuring Contact Fixed Hf | 0.1″ |
| Weight | 200 g |
| Measuring Depth Max. L | 3.2″ |
| Reference Temperature | 20 °C / (-10 to 30)°C |
| Storage Temperature | (-10 to 50)°C |
| Protection Class | IP65 |
| Manufacturer’s Warranty | Two year limited manufacturer’s warranty |
209-456
â—‹ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
â—‹ Use CAL MRM-D7R20 when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

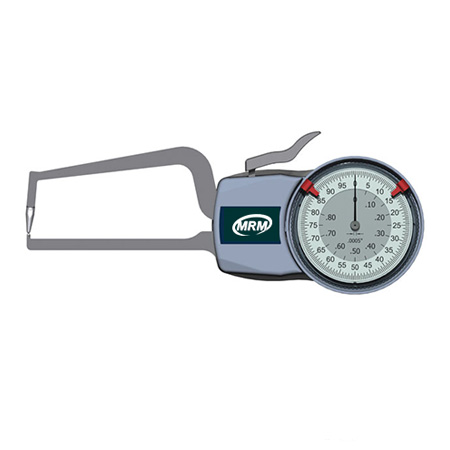

MRM-D7R20 Dial Caliper Gauge
For a quote, please email us at  [email protected]
