Product Description
- Features
- Specifications

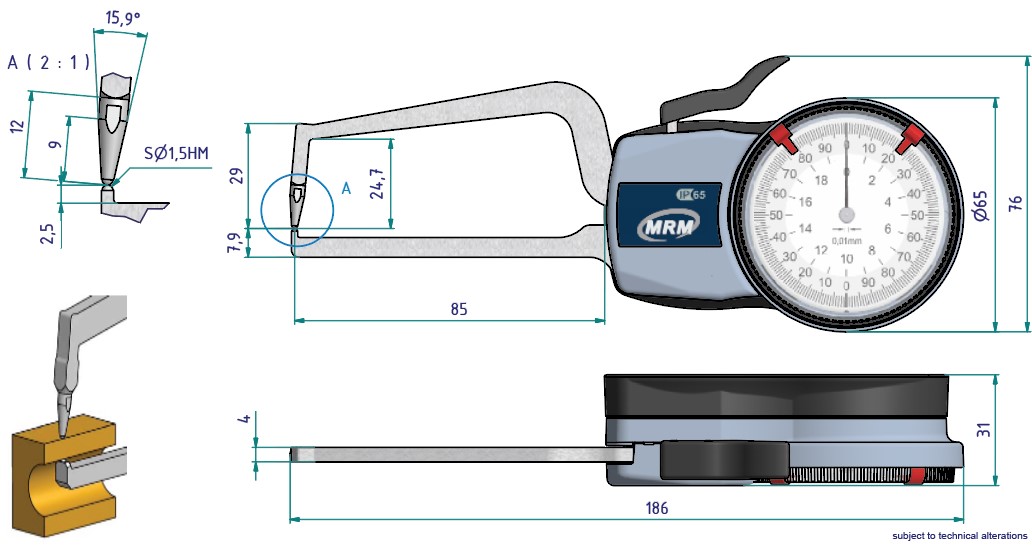

- Dimensions
- Accessories
- Downloads
- Calibration
| ○ Indicator should be used in conjunction with a setting ring or micrometer |
| ○ White dial face for easier, precise measurement readings |
| ○ Crystal is glare-free with a scratch-resistant coating |
| ○ IP65 Rating resists dusts and liquid penetration up to the force of a low-pressure water jet |
| ○ Supplied in a fitted plastic case |
| Range | (0 to 20) mm |
| Graduation | 0.01 mm |
| Accuracy | ± 0.03 mm |
| Min. Bohrungs-Durchmesser D | 9 mm |
| Range of Indication Azb | (0 to 20.5) mm |
| Repeatability Limit R | 0.1 mm |
| Measuring Force F min. | 1.1 N |
| Type of Measuring Contact Movable | HM-Ball Ø 1.5 mm |
| Measuring Contact Movable Hb | 24.7 mm |
| Type of Measuring Contact Fixed | HM-Ball Ø 1.5 mm |
| Measuring Contact Fixed Hf | 2.5 mm |
| Measuring Depth Max. L | 85 mm |
| Weight | 200 g |
| Reference Temperature | 20°C / (-10 to 30)°C |
| Storage Temperature | (-10 to 50)°C |
| Protection Class | IP65 |
| Warranty | Two years limited manufacturer’s warranty |
209-407
○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc. ○ Use CAL MRM-D2R20S when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the MRM-D2R20S External Dial Caliper Gauge
For a quote, please email us at [email protected]
