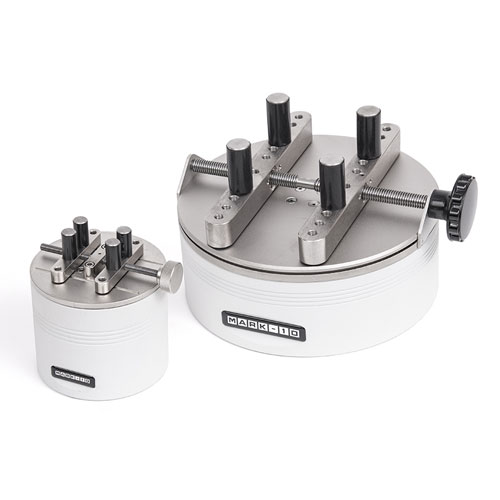

| ○ Closure Torque Sensors |
| ○ Ideal for testing torque on bottle caps, closures, valves, fasteners, and other items in sizes ranging between (14 to 148) mm / (0.56 to 5.7)” diameter |
| ○ Models include movable posts to easily accommodate a variety of shapes and sizes, with optional flat and adjustable jaws for unique samples |
| ○ Capacities available from (10 ozFin to 100) in.lbf / (7 to 1,150) cm.N |
| ○ Requires a Mark-10 indicator |
| ○ NIST-traceable certificate of calibration with data included |
| ○ Member of the Plug & Test™ family of interchangeable sensors and indicators |
| ○ Rugged aluminum housing |
| ○ Reversible jaws for round or rectangular containers |
| ○ Spill proof construction |
| ○ May be used for torque tool calibration |
| Accuracy | ± 0.5% of Full Scale + Indicator |
| Weight | MR53-10Z – MR53-50Z 1.0 kg / 2.2 lb, MR53-12 – MR53-100 2.5 kg / 5.4 lb |
| Warranty | 3 years |
| MODELS: 5i and 7i INDICATORS | ||||||||
| Capacity x Resolution | in.lbf | in.ozf | ft.lbf | cm.gf | mm.kgf | m.Nm | cm.N | N.m |
| MR53-10Z | – | 10 x 0.01 | – | 700 x 0.5 | 7 x 0.005 | 70 x 0.05 | 7 x 0.005 | – |
| MR53-20Z | – | 20 x 0.02 | – | 1400 x 1 | 14 x 0.01 | 140 x 0.1 | 14 x 0.01 | – |
| MR53-50Z | – | 50 x 0.05 | – | 3600 x 5 | 36 x 0.05 | 350 x 0.5 | 35 x 0.05 | – |
| MR53-12 | 12 x 0.01 | 192 x 0.1 | 1 x 0.001 | – | – | – | 135 x 0.1 | 1.35 x 0.001 |
| MR53-50 | 50 x 0.05 | 800 x 0.5 | 4 x 0.005 | – | – | – | 570 x 0.5 | 5.7 x 0.005 |
| MR53-100 | 100 x 0.1 | 1600 x 1 | 8 x 0.01 | – | – | – | 1150 x 1 | 11.5 x 0.01 |
| MODEL: 3i INDICATOR | ||||
| Capacity x Resolution | in.lbf | in.ozf | mm.kgf | cm.N |
| MR53-10Z | – | 10 x 0.01 | 7 x 0.005 | 7 x 0.005 |
| MR53-20Z | – | 20 x 0.02 | 14 x 0.01 | 14 x 0.01 |
| MR53-50Z | – | 50 x 0.05 | 36 x 0.05 | 36 x 0.05 |
| MR53-12 | 12 x 0.01 | 192 x 0.2 | – | 135 x 0.1 |
| MR53-50 | 50 x 0.05 | 800 x 1 | – | 570 x 0.5 |
| MR53-100 | 100 x 0.1 | 1600 x 2 | – | 1150 x 1 |
| CT001 | Alternative gripping method ideal for square or odd shaped samples |
| CT003 | 4 rubber-edged gripping arms per jaw. Arms may be independently repositioned in 45° increments to accommodate unique samples |
| CT005, CT006 | 6.3 mm / 2.5″ and 101 mm / 4″ lengths available |
Calibration and Repair Services
MRM provides Calibration and Repair Services for the
MR53-20Z Mark-10 Torque Sensor, Series R53
For a quote, please email us at [email protected]
