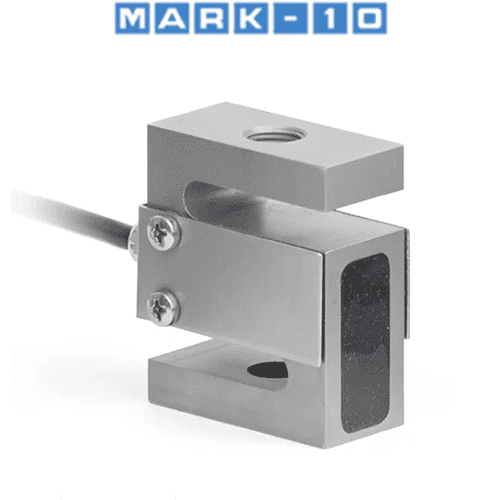

MR07-1500 Mark-10 Force Sensor

MR07-750 Mark-10 Force Sensor, 3750 N / 750 lbf

The MR07-750 Force Sensor measures tension and compression forces and is designed for Series F Test Frames. With Plug & Test® technology, all configurations and calibration data are saved within the sensor, which allows for more interchangeable options. AC1083 Adapter is required.

Made in the USA and comes with a three year manufacturer’s warranty.
Shop for MR07-750 Force Sensor at MRM Metrology, and save.
Buy MR07-750 Force Sensor now for the best price in Canada.

Email us for the lowest price.
Click on [email protected] to request a quotation.

Made in USA
Other Models
SKU: MR07-750 Categories: ,

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

â—‹ Measure tension and compression force
â—‹ Compatible with Models F755, F755S, F1505 and F1505S test frames
○ Member of the Plug & Test® family of interchangeable sensors and indicators (Adapter is required)

Capacity 750 lbf , 12,000 ozf , 375 kgf , 3,750 N , 3.75 kN
Resolution 0.5 lbf , 10 ozf , 0.2 kgf , 2 N , 0.002 kN
Accuracy ± 0.15% of full scale + indicator or test frame
Weight 0.9 kg , 1.9 lb depending on model
Safe Overload 150% of Full Scale
Warranty Three years limited manufacturer’s warranty

Capacity x Resolution lbf ozf gf kgf N kN
MR07-50 50 x 0.02 800 x 0.5 25000 x 10 25 x 0.01 250 x 0.1 –
MR07-100 100 x 0.05 1600 x 1 50000 x 20 50 x 0.02 500 x 0.2 –
MR07-200 200 x 0.1 3200 x 2 – 100 x 0.05 1000 x 0.5 1 x 0.0005
MR07-300 300 x 0.2 4800 x 5 – 150 x 0.1 1500 x 1 1.5 x 0.001
MR07-500 500 x 0.2 8000 x 5 – 250 x 0.1 2500 x 1 2.5 x 0.001
MR07-750 750 x 0.5 12000 x 10 – 375 x 0.2 3750 x 2 3.75 x 0.002
MR07-1000 1000 x 0.5 16000 x 10 – 500 x 0.2 5000 x 2 5 x 0.002
MR07-1500 1500 x 1 24000 x 20 – 750 x 0.5 7500 x 5 7.5 x 0.005
Mark-10 Force Sensors, Series R01


Model A B C D E F
MR07-50 to MR07-200 61 mm , 2.40″ 50.8 mm , 2.00″ 11.7 mm , 0.46″ 22.9 mm , 0.90″ 1/4-28 UNF 254 mm , 10″
MR07-300 to MR07-1000 61 mm , 2.40″ 50.8 mm , 2.00″ 18.0 mm , 0.71″ 27.9 mm , 1.10″ 1/2-20 UNF 254 mm , 10″
MR07-1500 61 mm , 2.40″ 50.8 mm , 2.00″ 24.4 mm , 0.96″ 35.6 mm , 1.40″ 1/2-20 UNF 254 mm , 10″

â—‹ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
â—‹ Use CAL MR07-750 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
MR07-750 Mark-10 Force Sensor

For a quote, please email us at  [email protected]
