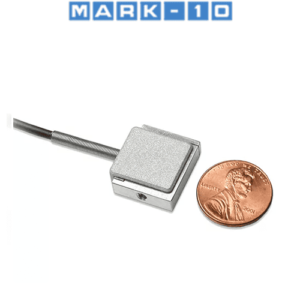

| â—‹ Extremely compact force measurement sensors for tensile and compressive loads in applications with limited space |
| â—‹ Every capacity has the same miniature dimensions |
| â—‹ The sensors feature outstanding mechanical overload protection |
| â—‹ Member of the Plug & Test™ family of interchangeable sensors and indicators |
| â—‹ Ultra-compact size |
| â—‹ Measures tensile and compressive forces |
| â—‹ Threaded holes on two sides for the mounting of attachments or implements |

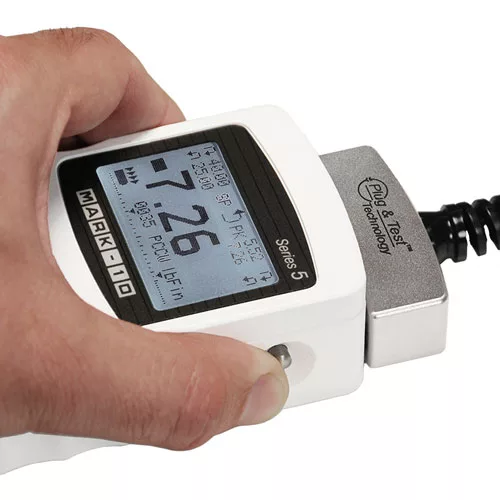

| â—‹ Requires a Mark-10 indicator |
| Capacity | 500 N , 100 lbf |
| Accuracy | ± 0.2% of Full Scale + Indicator |
| Weight | 0.007 kg / 0.015 lb |
| Warranty | Three years limited manufacturer’s warranty |
| MODELS: 5i and 7i INDICATORS | ||||||
| Capacity x Resolution | lbf | ozf | gf | kgf | N | mN |
| MR04-025M | 0.25 x 0.0001 | 4 x 0.002 | 100 x 0.05 | – | 1 x 0.0005 | 1000 x 0.5 |
| MR04-05M | 0.5 x 0.0002 | 8 x 0.005 | 250 x 0.1 | – | 2.5 x 0.001 | 2500 x 1 |
| MR04-2 / MR04-2M | 2 x 0.001 | 32 x 0.02 | 1000 x 0.5 | 1 x 0.0005 | 10 x 0.005 | – |
| MR04-5 / MR04-5M | 5 x 0.002 | 80 x 0.05 | 2500 x 1 | 2.5 x 0.001 | 25 x 0.01 | – |
| MR04-10M | 10 x 0.005 | 160 x 0.1 | 5000 x 2 | 5 x 0.002 | 50 x 0.02 | – |
| MR04-20 / MR04-20M | 20 x 0.01 | 320 x 0.2 | 10000 x 5 | 10 x 0.005 | 100 x 0.05 | – |
| MR04-50 / MR04-50M | 50 x 0.02 | 800 x 0.5 | 25000 x 10 | 25 x 0.01 | 250 x 0.1 | – |
| MR04-100 / MR04-100M | 100 x 0.05 | 1600 x 1 | 50000 x 20 | 50 x 0.02 | 500 x 0.2 | – |
| MODEL: 3i INDICATOR | ||||
| Capacity x Resolution | lbf | gf | kgf | N |
| MR04-025M | 0.25 x 0.0002 | 100 x 0.1 | – | 1 x 0.001 |
| MR04-05M | 0.5 x 0.0005 | 250 x 0.2 | – | 2.5 x 0.002 |
| MR04-2 / MR04-2M | 2 x 0.002 | – | 1 x 0.001 | 10 x 0.01 |
| MR04-5 / MR04-5M | 5 x 0.005 | – | 2.5 x 0.002 | 25 x 0.02 |
| MR04-10M | 10 x 0.01 | – | 5 x 0.005 | 50 x 0.05 |
| MR04-20 / MR04-20M | 20 x 0.02 | – | 10 x 0.01 | 100 x 0.1 |
| MR04-50 / MR04-50M | 50 x 0.05 | – | 25 x 0.02 | 250 x 0.2 |
| MR04-100 / MR04-100M | 100 x 0.1 | – | 50 x 0.05 | 500 x 0.5 |
| Model | Thread |
| MR04-025M | M3 x 0.5 |
| MR04-2 / MR04-100 | #4-40 UNC |
| Model | Thread |
| MR04-05M / MR04-100M | M3 x 0.5 |
â—‹ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
â—‹ Use CAL MR04-100 when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the
MR04-100 Mark-10 Miniature Force Sensor
For a quote, please email us at  [email protected]
