ME-200 Mark-10 Ergonomic Force Gauge, Series E

The ME-200 Ergonomic Series E push/pull force gauge make job task analysis and ergonomics analysis simple and accurate, ideal for workplace design, strength assessment, and ergonomic studies. Capacity force gauges are available, along with a wide range of attachments for various applications.

Made in the USA and comes with a three-year manufacturer’s warranty.
Shop for ME-200 Force Gauge at MRM Metrology, and save.
Buy ME-200 now for the best price in Canada.

Email us for the lowest price.
Click on [email protected] to request a quotation.

Made in USA
SPC


Other Models
SKU: ME-200 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Measure real time and peak push and pull forces
○ Click-LockTM accessory mounting technology
○ USB data output
○ High / low limit indicators, for pass / fail and minimum force testing
○ Averaging mode calculates average force over a period of time
○ 5,000-point data memory – data points may be saved individually or logged continuously at up to 7,000 Hz. Data points may be bulk downloaded to included MESURTM Lite data collection software
○ Statistical calculations for saved data points
Capacity x Resolution 1000 x 0.2 N , 200 x 0.05 lbf , 3200 x 1 ozf , 100 x 0.02 kgf , 1 x 0.0002 kN
Accuracy ± 0.2% of Full Scale
Sampling Rate 7,000 Hz
Power AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low
Backlight On Up to 7 hours of continuous use
Backlight Off Up to 24 hours of continuous use
Measurement Unit lbf, ozf, gf, kgf, N, kN (depending on model)
USB Output Configurable up to 115,200 baud
Safe Overload 200% of full scale (display shows “OVER” at 110% and above)
Weight 0.8 KG , 1.7 lb
Warranty Three years manufacturer’s warranty

Capacity x Resolution lbf ozf kgf gf N kN
ME-100 100 x 0.05 1600 x 1 50 x 0.02 50000 x 20 500 x 0.2 –
ME-200 200 x 0.05 3200 x 1 100 x 0.02 – 1000 x 0.2 1 x 0.0002
ME-500 500 x 0.1 8000 x 2 250 x 0.2 – 2500 x 0.5 2.5 x 0.0005

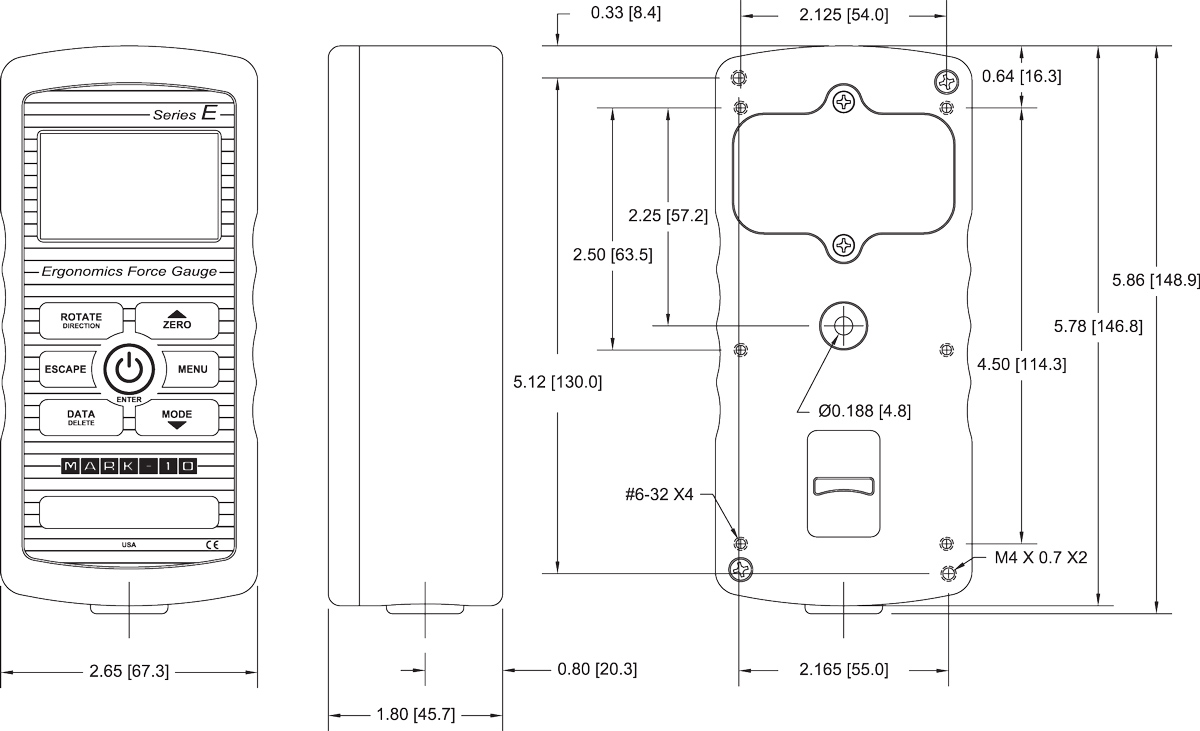

IN [MM]


Included Items
Carrying case
AC1030 Universal voltage AC adapter
08-1026 Battery (Installed in Force Gauge)
09-1165 USB cable
Resource CD (USB driver, MESUR™Lite software, MESUR™gauge and MESUR™gauge Plus 90-day trial, and user’s guide)
MESUR®Lite software
Optional Items
ME-100 Ergonomics force gauge
ME-200 Ergonomics force gauge
ME-500 Ergonomics force gauge
E1002 Padded attachment, square
E1003 Padded attachment, rectangular
E1004 Padded attachment, curved
E1005 Padded attachment, circular
E1006 Hook
E1007 Chain / hook assembly
E1008 Single handle grip
E1009 Double handle grip
E1010 Pistol grip
E1011 Grip adapter
E1012 Looped cable2
E1013 Myometer kit3
E1000 Carrying case, small
E1001 Carrying case, large

1. Kits include a force gauge with 110V AC adapter. Add suffix ‘E’ for Euro plug, ‘U’ for UK plug, or ‘A’ for Australian plug. Ex: EKE-100-1E
2. Does not fit into carrying cases.
3. Does not fit into carrying cases. Requires E1006 hook.

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL ME-200 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
ME-200 Mark-10 Ergonomic Series E

For a quote, please email us at  [email protected]
