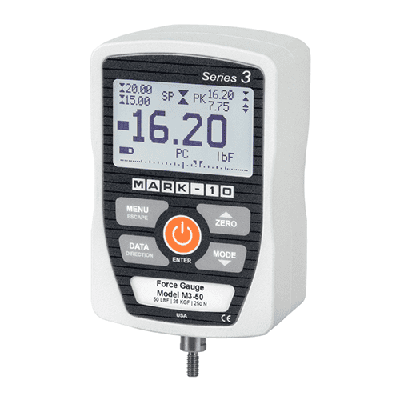

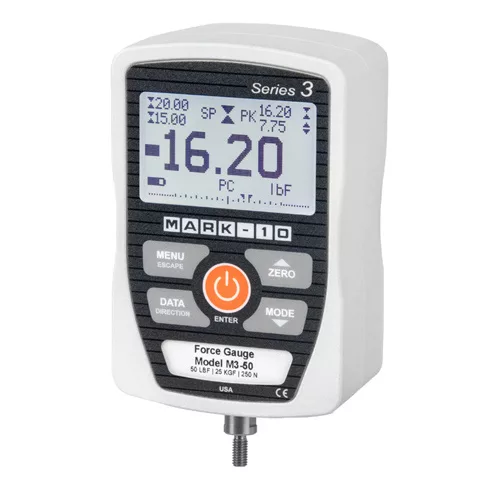

M3-100 Mark-10 Digital Force Gauge

M3-100 Mark-10 Digital Force Gauge, 500 N / 100 lbf / 50 kgf

CAD 895.00

FREE ISO 17025 Calibration Certificate
FREE shipping in Canada.

The M3-100 Digital Force Gauge is designed for tension and compression force testing applications with safe overload protection to 200% of its capacity. An analog load bar displays a graphical representation of the applied force. It has a high-speed 2,000 Hz sampling rate producing fast, accurate and reliable results.

Made in the USA and comes with a three-year manufacturer’s warranty.
Shop for M3-100 Force Gauge at MRM Metrology, and save.
Buy M3-100 now for the best price in Canada.

Email us for the lowest price.
Click on [email protected] to request a quotation.

Made in USA
SPC
Free Shipping Canada
ISO 17025



Grips and Attachments

Other Models

SKU: M3-100 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ High-speed 2,000 Hz sampling rate
○ USB data output of continuous or individual data points
○ Ultra-compact size
○ Large backlit graphic display
○ Programmable set points with pass/fail indicators
○ Live load bar graph with set point markers
○ Peak readings and set points always displayed
○ 3 selectable units of measurement
○ Configurable audio alarms and key tones
○ SPC output

Capacity x Resolution 500 x 0.5 N , 100 x 0.1 lbf , 50 x 0.05 kgf
Accuracy ± 0.3% of Full Scale
Sampling Rate 2,000 Hz
Power AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low
Backlight On Up to 7 hours of continuous use
Backlight Off Up to 24 hours of continuous use
Units of Measurement N , lbf , kgf
USB Outputs Configurable up to 115,200 baud
Safe Overload 200% of full scale (display shows “OVER” at 110% and above)
Weight 0.33 kg , 0.7 lb
Manufacturer’s Warranty Three years (See individual statement for further details)

Capacity x Resolution


Model lbf kgf gf N
M3-012 0.12 x 0.0001 – 50 x 0.05 0.5 x 0.0005
M3-025 0.25 x 0.0002 – 100 x 0.1 1 x 0.001
M3-05 0.5 x 0.0005 – 250 x 0.2 2.5 x 0.002
M3-2 2 x 0.002 1 x 0.001 – 10 x 0.01
M3-5 5 x 0.005 2.5 x 0.002 – 25 x 0.02
M3-10 10 x 0.01 5 x 0.005 – 50 x 0.05
M3-20 20 x 0.02 10 x 0.01 – 100 x 0.1
M3-50 50 x 0.05 25 x 0.02 – 250 x 0.2
M3-100 100 x 0.1 50 x 0.05 – 500 x 0.5
M3-200 200 x 0.2 100 x 0.1 – 1000 x 1
M3-500 500 x 0.5 250 x 0.2 – 2500 x 2

All models include 110V AC adapters. Add suffix ‘E’ for euro plug (220V), ‘U’ for UK plug (220V), or ‘A’ for Australian plug (220V). Example: M3-20E, M3-100U, M3-500A


Model Thread
M3-012 – M3-100 #10-32 UNF

IN [MM]


Included Items
G1024 Extension rod
G1038 Hook
G1026 Cone
G1025 Chisel
G1027 V-Groove
G1029 Flat
G1039 Coupling
12-1049 Carrying case
09-1165 USB cable
08-1030 AC Power Adapter
08-1026 Battery (Installed in Force Gauge)
Optional Items
15-1004 MESUR™gauge software
09-1165 Spare USB cable
08-1026 Spare rechargeable battery
AC1030 Spare AC adapter, 110V
AC1031 Spare AC adapter, 220V EUR
AC1032 Spare AC adapter, 220V UK
AC1035 Spare AC adapter, 220V AUS
AC1052 Mounting plate kit

Accessory Specific M3-012 – M3-20 M3-50 – M3-100 M3-200 – M3-500
Extension Rods G1024 G1024 G1031
Cone G1026 G1026 G1033
Chisel G1025 G1025 G1032
V-Groove G1027 G1027 G1034
Flat G1029 G1029 G1036
Hook G1028 G1038 G1035
Coupling – G1039 G1037

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL M3-100 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
M3-100 Mark-10 Digital Force Gauge

For a quote, please email us at  [email protected]
