| ○ Increased productivity via faster stabilization times (1 second in fast mode) |
| ○ Lower cost of ownership due to reduce number of parts and maintenance accessibility |
| ○ Electronically Controlled Load (ECL) does a self-diagnostic before performing an internal repeatability test without an external weight, all in less than a minute and a half |
| ○ Impact-alert visually and audibly indicates the magnitudes of impact shocks |
| ○ FR-Cal – calculates, displays/outputs the mass or volume flow rate by entering density |
| ○ FR-Compare – comparator that provides feedback if the flow rate is within limits |
| ○ Shock-log documents date, time, and shock level |
| ○ Internal/external calibration with easy one-touch button – performs and documents internal calibration |
| ○ Automatic Self-Calibration (ASC) – auto calibrates based on temperature and time interval |
| ○ Password-Protect – offers password-protection up to 11 users and 1 administrator |
| ○ GLP/GMP/GCP Compliance with full calibration reports |
| ○ Bright-bubble – large, easy-to-see, front mounted spirit level with LED Illumination |
| ○ Fly-thumbwheel is effortless and accessible, allows ergonomic adjustment with anti-slip feet |
| ○ Six straightforward keys – ON/OFF | REZERO, CAL, MODE, SAMPLE, PRINT, TARE |
| ○ Reverse backlit LCD is a large display with great black and white contrast, provides excellent visibility |
| ○ Stainless steel pan and dust-plate can be easily removed for cleaning |
| ○ Easy to assemble anti-static breeze break on 0.001 readability models |
| ○ Die-cast aluminum housing provides extra stability and durability |
| Capacity | 10200 g |
| Readability | 0.1 g |
| Linearity | ±0.1 g |
| Repeatability | 0.1 g |
| Weighing units of Measurements | mg , g , oz , ozt , ct , mom , dwt , gr , pcs , % , SG , and a user-programmable unit |
| Stabilization Time | ~ 1 sec , ~ 0.8 sec (for 500 g) |
| Calibration | Internal |
| IP Rating | IP20 |
| Connectivity | RS-232C , USB |
| Warranty | Five-year limited manufacturer’s warranty |
| Dimensions (W x D x H) | (212 × 317 × 93) mm |
| Included | |
| AC adapter | |
| Optional | |
| AD-1641 | Air flow logger |
| AD-1683 | Static eliminator |
| AD-1687 | Weighing environment logger |
| AD-1682 | Rechargeable Battery Pack (external) |
| AD-1684A | Electrostatic field meter |
| AD-1688 | Weighing data logger |
| AD-1689 | Tweezers for calibration weight |
| AD-8127 | Compact printer |
| AD-8920A | Universal Remote Display |
| AD-1691 | Weighing environment analyzer |
| AD-8526-25 | Ethernet Adapter D-Sub 25 |
| AD-8922A | Remote controller |
| AX-GXA-31 | Main unit cover (5 pcs) |
| AX-SW137-REZERO | Foot switch for re-zero |
| AD-8529PC-W | Bluetooth Converter for PC |
| AX-SW137-PRINT | Foot switch for print |
| AX-USB-9P | Serial/USB converter |
| AD-8529PR-W | Bluetooth Converter for Printer |
○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL GX-10001A-GS when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

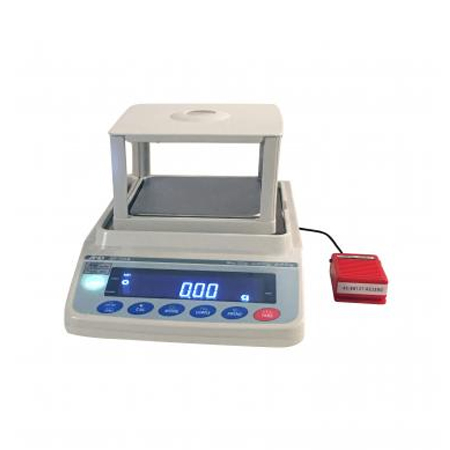

GX-10001A-GS Precision Balance
For a quote, please email us at [email protected]
