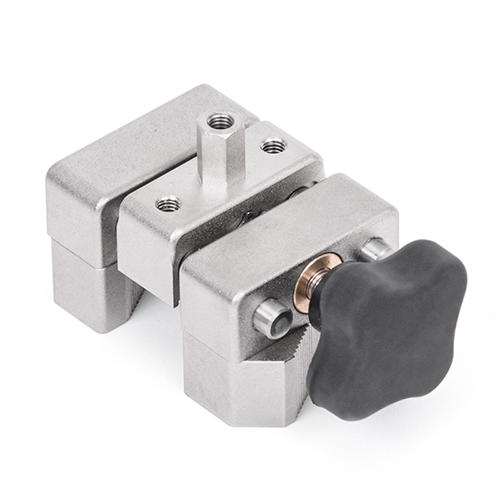

G1053 Mark-10 Universal V-Jaw Grip

The G1053 grip effectively secures round objects during torque and force testing. Reversible serrated jaws accommodate samples with diameters of 0.65 – 1.55 in [16.5 – 39.4 mm] while an ergonomic, rubberized knob easily engages and disengages samples. A precision Acme screw provides durability and longevity over repeated engagements. This grip can be used either manually with an R50 torque sensor or TT03 torque gauge, or in test stand controlled applications with the TSTM-DC torque test stand. A hex tail with female threads permits mounting to a torque gauge, force gauge, or test stand.

Made in the USA and comes with a three year limited manufacturer’s warranty.
Shop for G1053 at MRM Metrology.

SKU: G1053 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Serrated jaws secure bottle caps and other round objects
○ Precision Acme screws provides durability and longevity
○ May be used for force and torque measurements

Capacity Torque 11.3 Nm ; 100 lbf.in
Capacity Force 250 N ; 50 lbf
Weight 0.7 kg ; 1.5 lb
HS Code 9024800000
ECCN EAR99
Country of Origin USA
Manufacturer’s Warranty 3 years (See individual statement for further details)

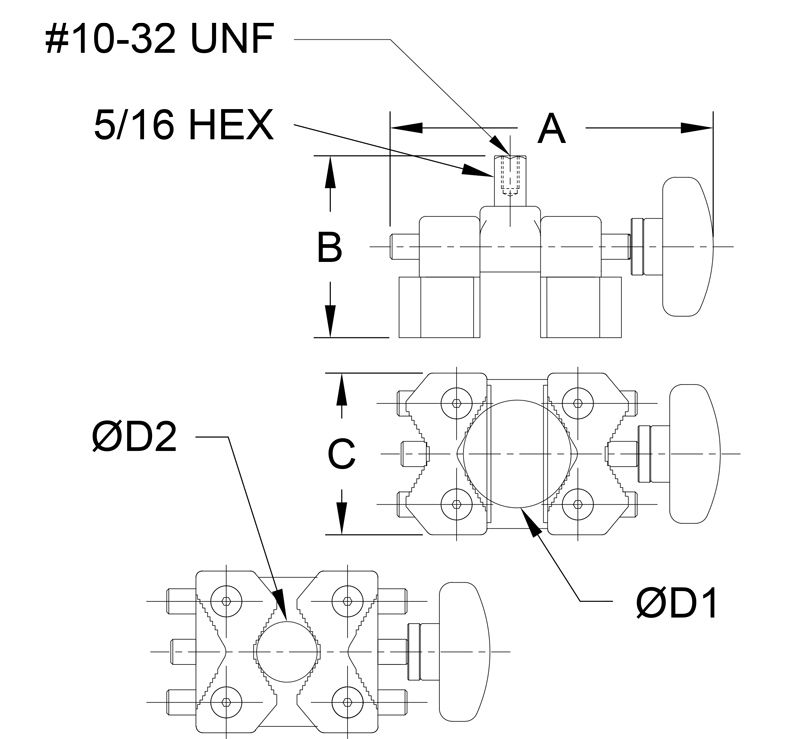

A B C ØD1* ØD2*
78.7 mm ; 3.1″ 45 mm ; 1.77″ 40.6 mm ; 1.6″ (27.9 to 39.4) mm ; (1.10 to 1.55)” (16.5 to 27.9) mm ; (0.65 to 1.10)”

Includes a #10-32 M/M stud with jam nuts


Swivel Adapter Swiveling action provides proper sample alignment in pull testing applications
Test Stand Adapter Securely mounts the grip to most Mark-10 force and torque test stands via two screws. Grip may otherwise be mounted via the included stud and jam nuts
Eye end Adapters Allow for quick grip installation and removal, and prevent grip rotation. Mount to common test frames, load cells, and force gauges
