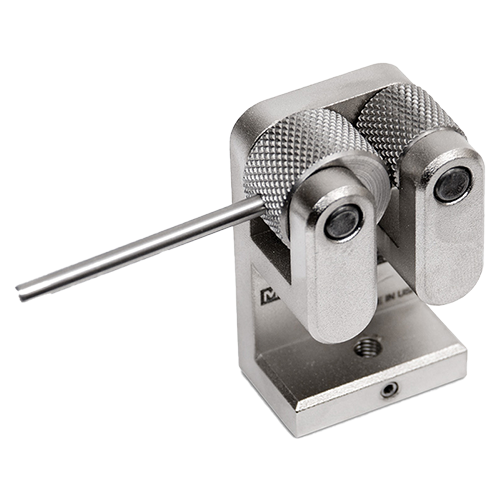

G1002-1 Mark-10 Dual Roller Grip

The G1002-1 cam grip secures the ends of wire, cable, and tubing samples for pull testing. Engaging and disengaging samples is quick and easy, with a side slot for sample insertion and serrated steel rollers. Commonly used with the G1001 wire terminal grip. Available in two size capacities.

Made in the USA and comes with a three year limited manufacturer’s warranty.
Shop for G1002-1 at MRM Metrology.

SKU: G1002-1 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ This cam grip secures the ends of wire, cable, and tubing samples for pull testing
○ Engaging and disengaging samples is quick and easy, with a side slot for sample insertion and serrated steel rollers
○ Commonly used with the G1001 wire terminal grip. Available in two size capacities

Capacity 1,000 N ; 200 lbf
Weight 0.11 kg ; 0.24 lb
HS Code 9024800000
ECCN EAR99
Country of Origin USA

Model A B C D E F G
G1002 30.0 mm ; 1.18″ 50.8 mm ; 2.00″ 19.1 mm ; 0.75″ (0 to 5.6) mm ; (0 to 0.22)” 6.4 mm ; 0.25″ 16.5 mm ; 0.65″ 25.4 mm ; 1.0″
G1002-1 33.0 mm ; 1.30″ 50.8 mm ; 2.00″ 19.1 mm ; 0.75″ (2.5 to 8.6) mm ; (0.10 to 0.34)” 6.4 mm ; 0.25″ 16.5 mm ; 0.65″ 25.4 mm ; 1.0″


Swivel adapter Swiveling action provides proper sample alignment in pull testing applications
Eye end adapters Allow for quick grip installation and removal, and prevent grip rotation
Mount to common test frames, load cells, and force gauges
