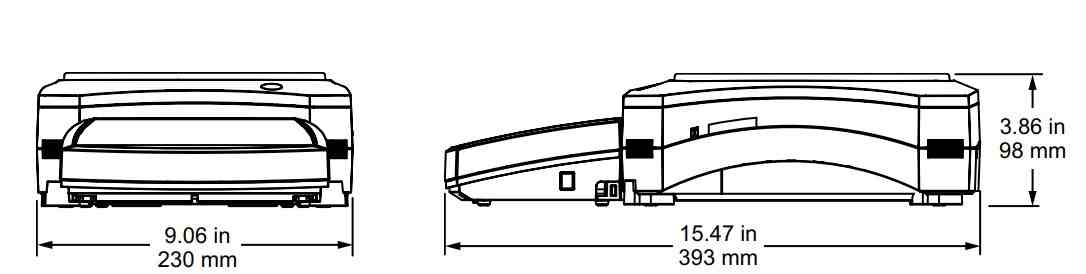

- Dimensions
- Accessories
- Downloads
- Calibration
| Applications | Weighing, Parts Counting, Percent Weighing, Checkweighing, Animal/Dynamic Weighing, Filling, Totalization/Statistics, Formulation, Differential Weighing, Density Determination, Peak Hold, Ingredient Costing, Pipette Adjustment, SQC, Statistics |
| Applications | 90 g |
| Display | 5.7″ (145 mm) Full-color VGA graphic touchscreen display with user-controlled brightness |
| Operation | AC adapter (included) |
| Communication | RS232 and USB (included) or second RS232/Ethernet (accessories sold separately) . GLP/GMP data output with real-time clock. |
| Construction | Metal base, ABS top housing, stainless steel pan, glass draft shield with top mounted side doors & flip/sliding top door (1mg models), illuminated up-front level indicator, weigh below hook, security bracket, calibration lock, 4 touchless sensors, in-use cover |
| Design | Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, auto standby, up to 14 operating languages |


| INCLUDED ITEMS | |
| Power Adapter | |
| Power Cord | |
| Use Cover | |
| OPTIONAL |
-
- 80850043
- Anti-Theft Device Lab Balance

-
- 80859553
- CalPak ASTM 5kg/200g CL1 Accrd TR

-
- 30944360
- Printer SF40A/BT Impact AM

-
- 30304101
- Interface Kit, RS232-USB

-
- 30064203
- Printer, Impact, SF40A, AM

-
- 80850000
- Anti-Theft Device, SP PA AV NV

-
- 80251992
- Printer, Thermal, STP-103, US

-
- 80500525
- Cable RS232 IBM 9P Male-to-Female

-
- 80252581
- Cable ST103-EX MB PA TxxP

-
- 80500524
- Cable, 25 Pin-9 Pin, PC-TxxP

-
- 30078078
- Cable, RS422, 9m, EX EX-HiCap

-
- 83021083
- Cable, RS422, Extension, EX EX-HiCap

-
- 83021085
- Cable, USB, Type A-B

-
- 83021102
- Column Kit, EX

-
- 83021084
- Draft Shield Kit,EX

-
- 83021082
- Ethernet Kit, EX EX-HiCap

-
- 83033633
- In-Use-Cover, Terminal, EX

-
- 80850080
- Software, Winwedge

-
- 30130302
- Static Ionizer, ION-100A, AM

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL EX10202 when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

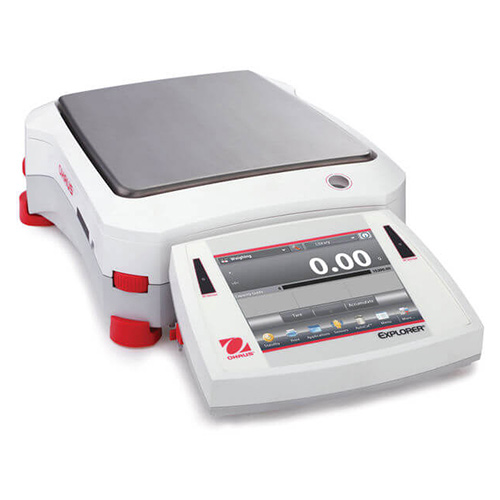

EX10202 Ohaus Precision Balance, Explorer
For a quote, please email us at [email protected]
