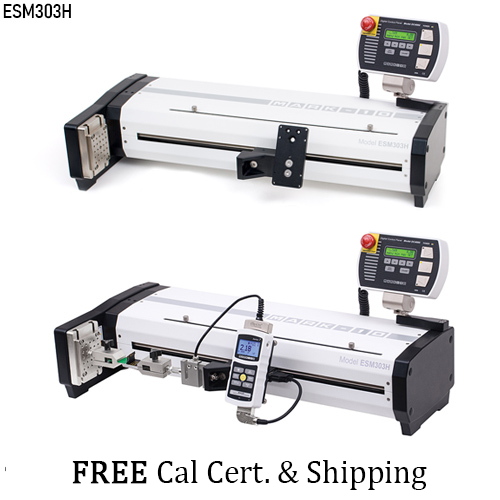

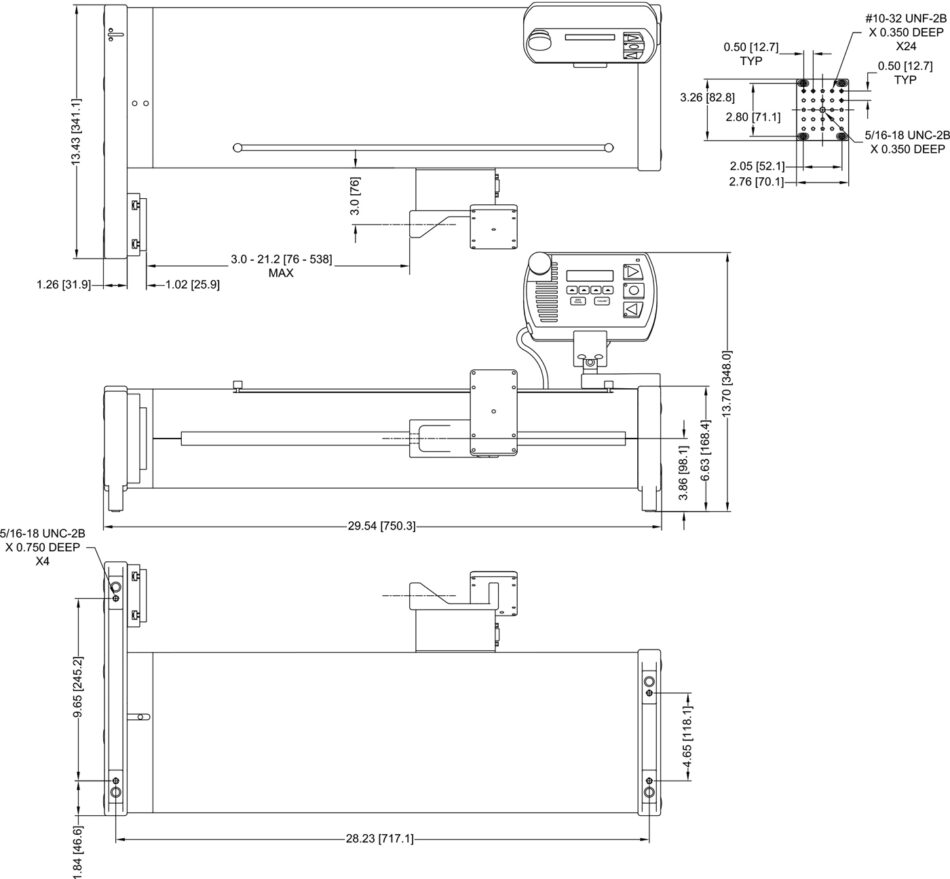

- Dimensions
- Accessories
- Downloads
- Calibration
| ○ Selectable speed setting |
| ○ Right and left travel limit switches |
| ○ Adjustable, removal controller with intuitive menu navigation |
| ○ Password protection of test parameters |
| ○ Stepper motor-driven, producing smooth and quiet operation with no speed variation under load |
| ○ USB output of force vs. time or force vs. travel |
| ○ Compact footprint, suitable for crowded workbenches |
| ○ Ergonomic design, with smart, clean cable management |
| ○ Integrated electronics assembly, easily removed and transported |
| ○ Adjustable mounting plate with T-slot base |
| Load Capacity up to 610 mm/min ; 24 in/min | 1.5 kN ; 300 lbf |
| Load Capacity > 610 mm/min ; 24 in/min | 1 kN ; 200 lbf |
| Maximum Travel Distance | 457 mm ; 18″ |
| Speed Range – Standard | (13 to 330) mm/min ; (0.5 to 13) inch/min |
| Speed Range – Optional | (0.5 to 1,100) mm/min ; (0.02 to 45) inch/min |
| Speed Setting Accuracy | ± 0.2% of setting |
| Speed Variation with Load | ± 0% (stepper motor driven) |
| Travel Accuracy * | ± 0.05 mm per 250 mm ; ± 0.002 inch per 10″ |
| Travel Resolution | 0.02 mm ; 0.001″ |
| Limit Switch Repeatability | 0.03 mm ; 0.001″ |
| Power | Universal input 80-240 VAC, 50/60 Hz, 60W |
| Weight | 28.4 kg ; 62.5 lb |
| Manufacturer’s Warranty | 3 years (See individual statement for further details) |
* Because load cell deflection and system deflection are present and not automatically compensated for, this equipment is recommended for applications requiring at least 5 mm / 0.2″ of travel distance.
| Included Items | |
| G1024 | 2” Extension Rod |
| G1028 | Small Hook |
| G1038 | Medium Hook |
| G1039 | Coupling, #10-32F/F |
| G1009 | 2” diameter Compression Plate |
| G1030 | Thread adapter, 5/16-18M to #10-32F (2 units) |
| G1067 | Thread adapter, 1/2-20 to #10-32F |
| G1069 | Thread adapter, 5/16-18F to 1/4-28M |
| #10-32 studs with hex nuts (3 units) | |
| Thumb screw for indicator (4 units) | |
| Thumb screw for limit switch (2 units) | |
| Allen wrench set | |
| Control panel | |
| Control panel mounting bracket and hardware | |
| Power cord | |
| Optional Items | |
| AC1094-1 | ESM303H, 6″ Frame extension |
| AC1094-2 | ESM303H, 12″ Frame extension |
| AC1094-3 | ESM303H, 24″ Frame extension |
| ESM303-004-1 | Control panel tabletop mounting kit, ESM303H |
| 09-1252 | Test stand-indicator interface cable, ESM303H |
| 09-1158 | USB cable |
| AC1064 | Load cell hardware kit |
| Controller Options | |
| AF008 | FollowMe® |
| AF010 | Travel measurement |
| AF010 | PC control |
| AF011 | Travel limits |
| AF012 | Overload protection |
| AF013 | Auto return |
| AF014 | Cycling |
| AF016 | Independent up/down speeds |
| AF017 | Low speed range extension |
| AF018 | High speed range extension |
| AF019 | Break detection |
| AF020 | Load holding |
| AF021 | Preload |
| AF022 | Save multiple profiles |
| AFCOMP-H | Complete options package for ESM303H |
