CAD1,995.00

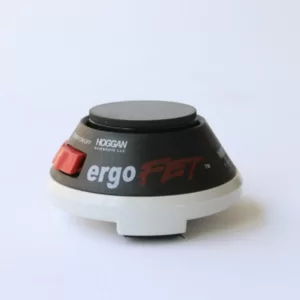

The 5056 ergoFET300 Push and Pull Force Gauge is a cost-effective and ergonomically designed handheld force gauge that makes testing easier and more closely simulates actual job tasks for one-hand push test applications. The ergoFET300, with its compact design and included assortment of test attachments, performs tests for a wide variety of applications. It measures both Push and Pull forces up to 300 lbf
Made in the USA and comes with a one-year manufacturer’s warranty.
Shop for 5056 Push/Pull Force Gauge at MRM Metrology, and save.
Buy 5056 Force Gauge now for the best price in Canada.
Email us for the lowest price.
Click on [email protected] to request a quotation.
| ○ Force Gauge Designed for Ergonomic and Engineering Applications |
| ○ Measure push & pull forces |
| ○ Easy To Read LCD Displays Show Peak Force and Elapsed Time |
| ○ Available FET Data Collection Software Automatically Tracks and Analyses Test Data |
| Capacity | (0 to 300) lbf |
| Resolution | 0.1 lbf |
| Accuracy | Within 1% of the Reading |
| Units of measure | pounds (lbf), Newtons (N), or kilogram-force (kgf) |
| Low Threshold | (0.8 to 300) lbf |
| High Threshold | (3.0 to 300) lbf |
| Stores | Up to 30 tests |
| Battery | Uses rechargeable lithium ion battery |
| Battery Life | Self-activating “sleep” mode after 3 minutes of non-use to extend battery life |

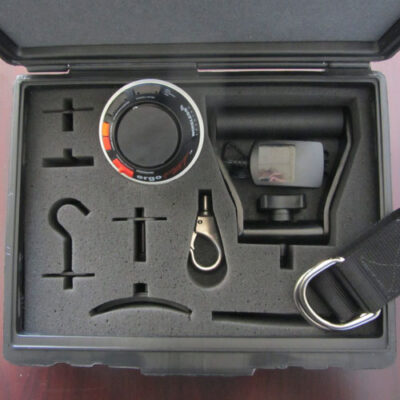

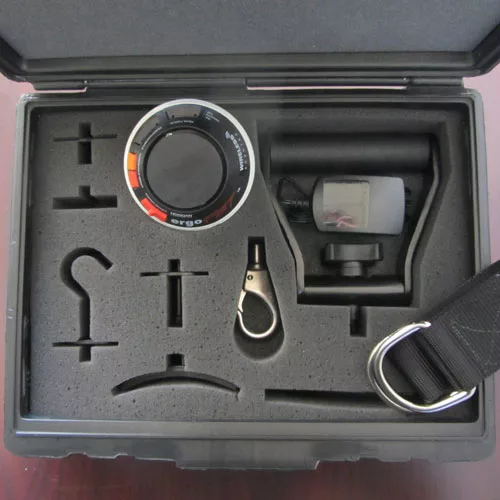

| Included |
| ○ Push attachments include: flat pad, curved pad, and digit pad |
| ○ Pull attachments include: open end stationary hook and snap hook, 16 inch strap with D rings, one hand handle, 4 inch extension post and adapter base ; wall pack power supply, calibration certificate, and carrying case |
| ○ One-Year standard manufacturer’s warranty is included, with extended warranties available |
| ○ Available FET Data Collection software is compatible with Windows operating systems XP or newer |
○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 5056 when requesting calibration services from MRM Metrology.
MRM provides Calibration and Repair Services for the
5056 ergoFET300 Push and Pull Force Gauge
For a quote, please email us at [email protected]
