5065 ergoFET Two-Hand Push and Pull Force Gauge, 500 lbf

Gauge Measures Heavy Push and Pull Forces up to 500 Pounds

Lowest price in Canada

The 5065 Digital Universal Force Gauge empowers ergonomic, engineering, and safety professionals to objectively measure and quantify human and product performance. This capability yields improved product functionality, quality, and manufacturing efficiency while reducing costs associated with cycle time and repetitive motion injuries.

Made in the USA and comes with a one-year manufacturer’s warranty.
Shop for 5065 Force Gauge at MRM Metrology and save.
Buy 5065 now for the best price in Canada.

Email us for the lowest price.
Click on [email protected] to request a quotation.

Hoggan
Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Force Gauge Designed for Ergonomic and Engineering Applications
○ Useful in a Wide Variety of Force Measurement Applications where Peak Force, or a 3-Second Averaged Force is Required
○ Tension & Compression Capacity: 500 lbf
○ Durable Aluminum Housing Built for Daily Industrial Use
○ Optional FET Data Collection Software Automatically Tracks and Analyzes Test Data

Capacity (0 to 500) lbf
Resolution 0.2 lbf
Accuracy Within 1% of the Reading
Display Peak and average force
Units of Measure Pound-Force (lbf), Newton (N), or Kilogram-Force (kgf)
Threshold Settings 4 selectable threshold settings – 2 low and 2 high
Operation 2 Operation Test Modes
Untimed Test Mode Record and display peak force and average force
Timed (Static Strength Test) Mode Record and display peak force and a 3 second average force over last 3 seconds of five second test
Battery Uses rechargeable lithium ion battery
Battery Life Self-activating “sleep” mode after 3 minutes of non-use to extend battery life

Included

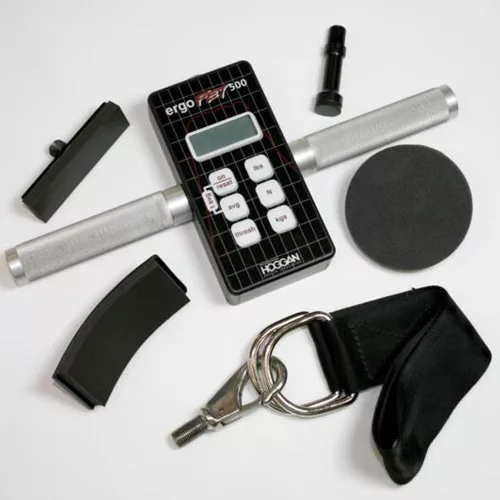

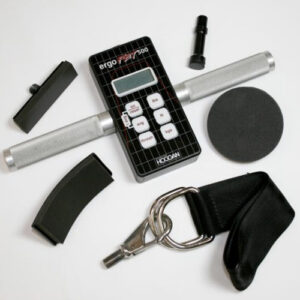

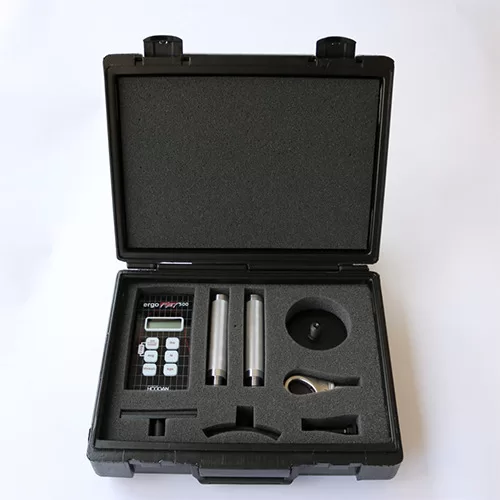

○ Wireless ergoFET™ 500, (2) aluminum handles, Push attachments include: flat pad, curved pad, and digit pad.
○ Pull attachments include: snap hook, 16 inch strap with D rings, wall pack power supply, calibration certificate, and carrying case
○ One-year standard manufacturer’s warranty is included, with extended warranties available
○ Available software is compatible with Windows operating systems XP or newer

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 5065 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
5065 ergoFET Two-Hand Push and Pull Force Gauge

For a quote, please email us at  [email protected]
