Product Description
- Features
- Specifications
- Dimensions
- Accessories
- Downloads
- Calibration
| ○ Simple 2 button operation |
| ○ Reset to zero feature |
| ○ Backlight turns on when on/off button is pressed |
| ○ Option for display to remain continuously on |
| ○ Continuous peak pressure indication option |
| ○ 316L welded diaphragm seal |
| ○ Rubber boot is standard |
| ○ ASME B40.100 compliant |
| ○ RoHS compliant |
| Range | (0 to 300) PSI |
| Accuracy | ± 1% (± 0.5% optional for gauges up to 10,000 PSI) |
| Case Size | 63 mm / 2.5” |
| Case Material | ABS |
| Rubber Boot | Silicone rubber |
| LCD Display | (48 x 16) mm / (2 x 3/4)” |
| Connection | 1/4” NPT 304SS |
| Sensor | 316L welded, Piezo |
| Operating Life | 1 million cycles |
| Power Supply | 2 x AAA battery (1.5 V) |
| Battery Life | 2 years (auto shut-off mode) |
| Power Mode | Auto or manual shut-off |
| Display Digits | 4 digits |
| Pressure Unit Selection | psi, mH2O, mmHg, mbar, kPa ranges ≤ 100 psi, bar, kgf/cm2, MPa, atm ranges ≥ 160 psi |
| Response Time | ≤ 3 Hz display refresh rate |
| Proof / Burst Pressure | 200% / 300% FS |
| Operating / Storage Temperature | 14ºF to 122ºF (-10ºC to 50ºC) / -4ºF to 167ºF (-20ºC to 75ºC) |
| Enclosure Rating | IP60 |
| Warranty | Five years limited manufacturer’s warranty |
| Model | Range | Dial Size | Connection | Socket |
| DPG203 | (-15 to 15) PSI | 63 mm / 2.5″ | 1/4″ Bottom | SS |
| DPG204 | (-15 to 30) PSI | 63 mm / 2.5″ | 1/4″ Bottom | SS |
| DPG205 | (-15 to 60) PSI | 63 mm / 2.5″ | 1/4″ Bottom | SS |
| DPG206 | (-15 to 100) PSI | 63 mm / 2.5″ | 1/4″ Bottom | SS |
| DPG207 | (-15 to 150) PSI | 63 mm / 2.5″ | 1/4″ Bottom | SS |
| DPG208 | (-15 to 200) PSI | 63 mm / 2.5″ | 1/4″ Bottom | SS |
| DPG209 | (-15 to 300) PSI | 63 mm / 2.5″ | 1/4″ Bottom | SS |
| DPG210 | (-15 to 0) PSI | 63 mm / 2.5″ | 1/4″ Bottom | SS |
| DPG211 | (0 to 15) PSI | 63 mm / 2.5″ | 1/4″ Bottom | SS |
| DPG212 | (0 to 30) PSI | 63 mm / 2.5″ | 1/4″ Bottom | SS |
| DPG213 | (0 to 60) PSI | 63 mm / 2.5″ | 1/4″ Bottom | SS |
| DPG214 | (0 to 100) PSI | 63 mm / 2.5″ | 1/4″ Bottom | SS |
| DPG215 | (0 to 160) PSI | 63 mm / 2.5″ | 1/4″ Bottom | SS |
| DPG216 | (0 to 200) PSI | 63 mm / 2.5″ | 1/4″ Bottom | SS |
| DPG217 | (0 to 300) PSI | 63 mm / 2.5″ | 1/4″ Bottom | SS |
| DPG218 | (0 to 600) PSI | 63 mm / 2.5″ | 1/4″ Bottom | SS |
| DPG219 | (0 to 1,000) PSI | 63 mm / 2.5″ | 1/4″ Bottom | SS |
| DPG220 | (0 to 1,500) PSI | 63 mm / 2.5″ | 1/4″ Bottom | SS |
| DPG221 | (0 to 2,000) PSI | 63 mm / 2.5″ | 1/4″ Bottom | SS |
| DPG222 | (0 to 3,000) PSI | 63 mm / 2.5″ | 1/4″ Bottom | SS |
| DPG223 | (0 to 5,000) PSI | 63 mm / 2.5″ | 1/4″ Bottom | SS |
| DPG224 | (0 to 10,000) PSI | 63 mm / 2.5″ | 1/4″ Bottom | SS |
| DPG225 | (0 to 15,000) PSI | 63 mm / 2.5″ | 1/4″ Bottom | SS |
| Optional Items |
| NVA Needle Valve (Straight body, hard seat) |
| NVA Needle Valve (Straight body, soft seat) |
| SCT Cooling Tower |
| SOP Over Pressure Protector |
| SSN Snubber |
| SSN-LF Lead Free Snubber |
| SSP Syphon |
○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL DPG217 when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

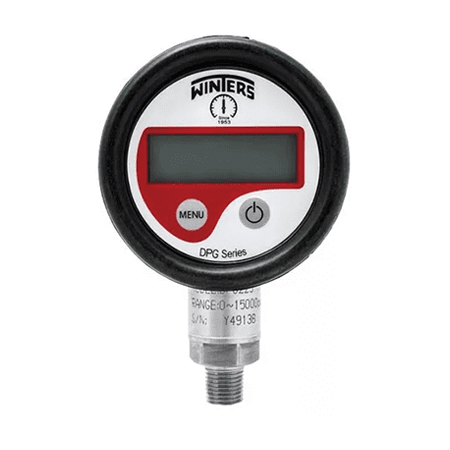

DPG217 Winters Digital Pressure Gauge
For a quote, please email us at [email protected]
