| ○ Increase productivity with 1 second stabilization time using Smart SHS |
| ○ Easily determine the minimum sample size to reduce waste and increase savings, plus alert users to ensure USP41 compliance |
| ○ Simplify your daily precision check and SOPs with the standard deviation function |
| ○ Set up repeatability testing and run automatic precision checks without external weights using Electronically Controlled Load (ECL) management |
| ○ Reduce errors and damage with impact shock detection and overload protection |
| ○ Eliminate static disturbance of samples with available fanless/touchless ionizer |
| ○ Six simple and straightforward keys |
| ○ A quick toggle to change between USB and RS-232C communication |
| ○ Easily level the balance (even with gloves on!) the illuminated, front mounted level |
| ○ Users of the balance can be limited by setting a password (Password lock function) |
| ○ Underhook, for measuring density and weighing magnetic materials |
| ○ Hold Function, provided for weighing a moving object such as an animal |
| ○ Capacity Indicator, displaying the weight value in percentage relative to the weighing capacity. |
| ○ A small breeze break is included with the model featuring a minimum display |
| Capacity |
(0 to 122) g |
| Readability |
0.0001 g (d) |
| Linearity |
±0.0002 g |
| Repeatability |
0.0001 g |
| Weighing units of Measurements |
mg , g , oz , ozt , ct , mom , dwt , gr , pcs , % , SG , and a user-programmable unit |
| Stabilization Time |
Approx. 1.5 sec (100 g) |
| Calibration |
External |
| Weighing Pan Size |
Ø 90 mm |
| Warranty |
Five-year limited manufacturer’s warranty |
| Dimensions (W x D x H) |
(259 x 358 x 332) mm |
| Included |
|
| AC adapter |
|
| |
|
| Optional |
|
| GXA-03 |
Secondary RS232 Interface |
| GXA-04 |
Comparator relay output/buzzer/external key input interface |
| GXA-06 |
Analog Output; Factory Installed Only |
| GXA-09 |
Built-in rechargeable battery (factory-installed only) |
| GXA-10 |
Large Glass Breeze Break for GX-203/303/403/603/1003/1603 (8.2” / 21 cm high) |
| GXA-12 |
Animal Weighing Pan for models of 320 g capacity or higher |
| GXA-14 |
Density determination kit (for the 0.1 mg models only) |
| GXA-17 |
Large Glass Breeze Break with built-in fanless ionizer and external IR switch |
| GXA-23-PRINT |
External key input interface with the AX-SW137-PRINT foot switch |
| GXA-23-RZERO |
External key input interface with the AX-SW137-REZERO foot switch |
| GXA-23-PLUG |
External key input interface with the AX-T-314A-S plug |
| GXA-24 |
USB host interface (factory-installed only) |
| GXA-25 |
External fan less ionizer (static eliminator) |
| GXA-26 |
External IR switch |
| GXA-31-1PK |
Protective In-Use Cover 1 each |
| GXA-31-5PK |
Protective In-Use Cover 5 pack |
| FXi-08 |
Ethernet interface |
| AD-1682 |
Rechargeable Battery Pack (external) |
| AD-8526-25 |
Ethernet Adapter D-Sub 25 |
| AD-8920A |
Universal Remote Display |
| AD-100-2 |
Anti-theft Device |
| SW:127 |
Foot Switch |
| TB:648 |
Replacement AC Adapter (120V / 220V) |
| AD-8529PC-W |
Bluetooth Converter for PC |
| AD-8529PR-W |
Bluetooth Converter for Printer |
○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CALGF-124A when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

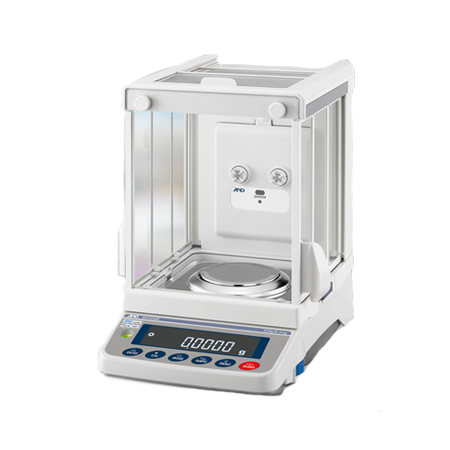

GF-124A Analytical Balance
