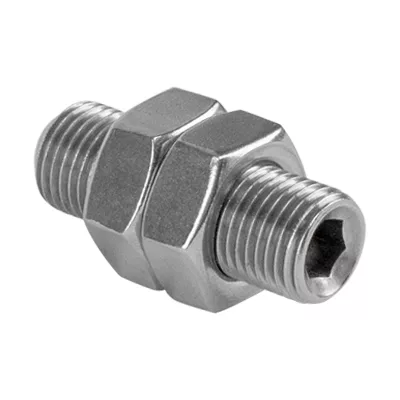

AC1082-1 Mark-10 Stud / Jam Nut

The AC1082-1 Stud / Jam Nut is for use between force gauges, test stands, grips, and attachments.

Made in the USA and comes with a three year limited manufacturer’s warranty.
Shop for AC1082-1 at MRM Metrology.

Other Models
SKU: AC1082-1 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ For use between force gauges, test stands, grips and attachments

Capacity 2,500 N ;500 lbF
Length 25.4 mm ; 1.00″
Thread A 5/16-18M
Thread B 5/16-18M
Manufacturer’s Warranty 3 years (See individual statement for further details)

Model Capacity Length Tread A Tread B
G1051 500 N ; 100 lbF 14.0 mm ; 0.55″ #4-40M #10-32M
G1050 500 N ; 100 lbF 19.1 mm ; 0.75″ #10-32F #4-40M
G1039 1,000 N ; 200 lbF 19.1 mm ; 0.75″ #10-32F #10-32F
G1030 1,000 N ; 200 lbF 12.7 mm ; 0.50″ #10-32F 5/16-18M
G1067 1,000 N ; 200 lbF 19.1 mm ; 0.75″ #10-32F 1/2-20M
G1048 1,000 N ; 200 lbF 19.1 mm ; 0.75″ #10-32F M4M
G1057 1,000 N ; 200 lbF 19.1 mm ; 0.75″ #10-32F M6F
G1054 1,000 N ; 200 lbF 19.1 mm ; 0.75″ #10-32F M6M
G1060 1,000 N ; 200 lbF 19.1 mm ; 0.75″ #10-32M #10-32M
G1063 1,000 N ; 200 lbF 33.0 mm ; 1.30″ #10-32M 5/16-18F
G1047 1,000 N ; 200 lbF 19.1 mm ; 0.75″ #10-32M M4F
G1069 2,500 N ; 500 lbF 31.8 mm ; 1.25″ 5/16-18F 1/4-28M
G1037 2,500 N ; 500 lbF 25.4 mm ; 1.00″ 5/16-18F 5/16-18F
G1059 2,500 N ; 500 lbF 28.7 mm ; 1.13″ 5/16-18F 1/2-20F
G1066 2,500 N ; 500 lbF 19.1 mm ; 0.75″ 5/16-18F 1/2-20M
G1049 2,500 N ; 500 lbF 31.8 mm ; 1.25″ 5/16-18F M6M
G1040 2,500 N ; 500 lbF 23.4 mm ; 0.92″ 5/16-18M 5/16-18M
G1091 5,000 N ; 1,000 lbF 33.0 mm ; 1.30″ 1/2-20F 1/2-20F
G1041 2,500 N ; 500 lbF 26.9 mm ; 1.06″ 1/2-20MM 5/16-18M
G1113 500 N ; 100 lbF 19.1 mm ; 0.75″ M3M #4-40F
AC1082 500 N ; 100 lbF 19.1 mm ; 0.75″ #10-32M #10-32M
AC1082-1 2,500 N ; 500 lbF 25.4 mm ; 1.00″ 5/16-18M 5/16-18M
AC1082-2 9,000 N ; 2,000 lbF 38.1 mm ; 1.50″ 1/2-20M 1/2-20M

G1044* Adapter plate, 1/2-20F*

*Compatible with any Mark-10 test stand with a threaded hole matrix base plate, such as TSF, ESM303, etc.
