973025-3 Solartron Digital Block Gauge DK/2/S

The 973025-3 Digital Block Gauge makes precision measurements of bores and cavities a simple and reliable process. It is recommended in applications where space and access is limited and where the use of axial probes is not possible.

It offer unrivalled ruggedness, accuracy and repeatability. It is extremely versatile and provide datum surfaces and all the adjustments required for precision gauging applications. The Block Gauge have robust precision linear bearings with minimal clearance, which limits unmeasured movements, maintaining good repeatability even when the contact tip is mounted off center.

Made in the United Kingdom and it comes with a one-year manufacturer’s warranty.
Shop for 973025-3 Digital Block Gauge at MRM Metrology, and save.
Buy 973025-3 Block Gauge now for the best price.

Email us for the lowest price. Click on [email protected] to request a quotation.

SKU: 973025-3 Category:

Product Description

  • Features
  • Specifications

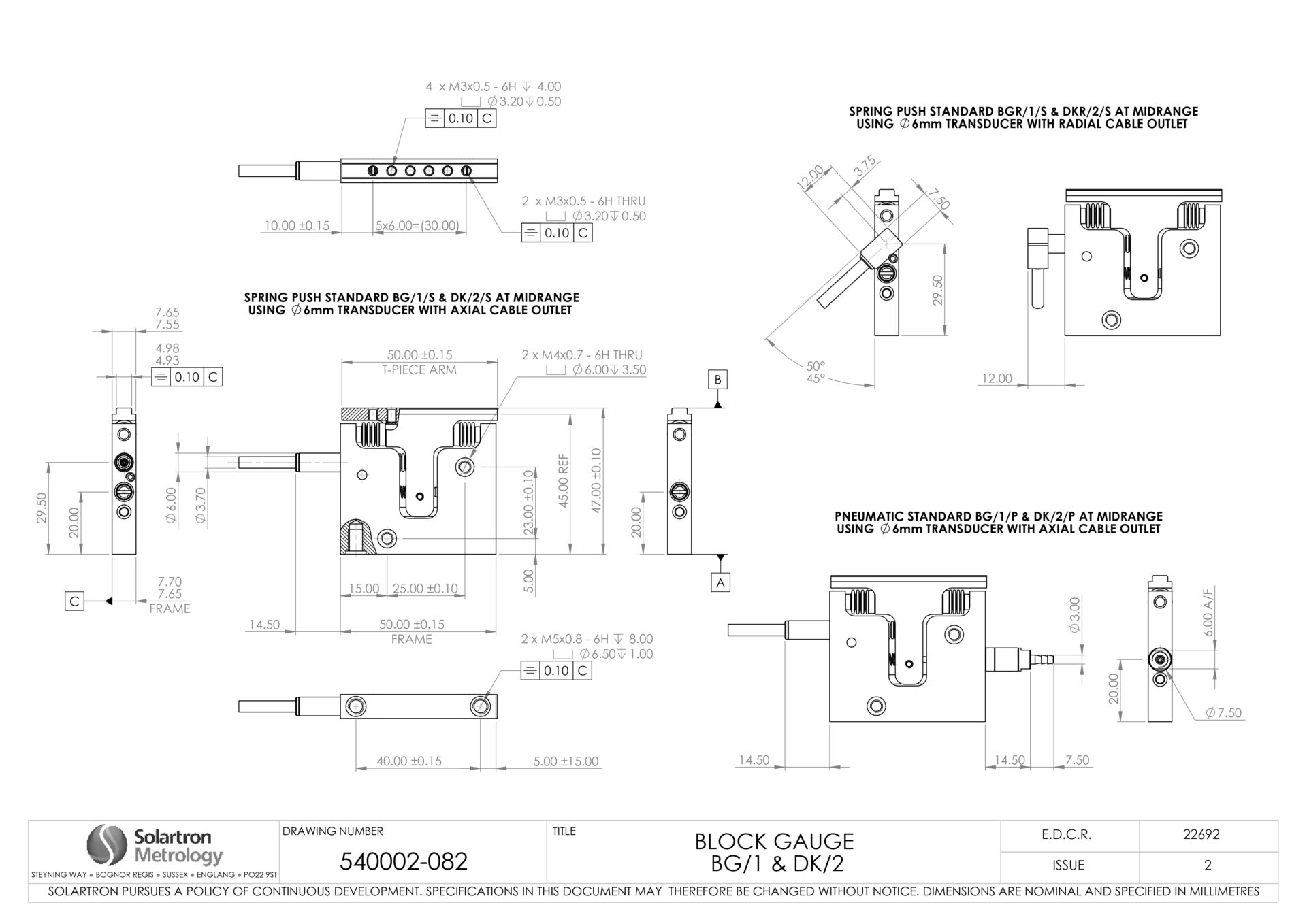

  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Sensors for hard to reach areas, such as
bores or gaps
○ Excellent resolution and repeatability
○ Robust design
○ Applications where space and access is limited and where the use of axial probes is not possible
○ Spring actuation
○ IP65 sealing

Measurement Performance
Measurement Range (Note 3) 2 mm
Resolution 0.01 µm
Accuracy (Note 1) 0.05%
Repeatability (Note 2) <0.25 µm
Pre Travel 0.15 mm
Post Travel 0.85 mm
Tip Force (N) at Middle of Range ± 20% (Note 7)
Spring Push 1.5
Pneumatic at 2 bar Minimum Note 6
Temperature Coefficient µm/ºC 0.2
Environmental
Sealing IP65
Sealing for Probe Interface Electronics IP43 for module and TCON
Storage Temperature (-20 to 80)ºC
Block Gauge Operating Temperature with Gaiter (-20 to 80)ºC
Micro Single Leaf Flexure Operating (5 to 80)ºC
Temperature with Gaiter (0 to 80)ºC
Electronics Operating Temperature (0 to 60)ºC
EMC Emission EN61000-6-3
EMC Immunity EN61000-6-2
MSLF Vibration 10 g up to 2 kHz
Shock Do not subject Block Gauge to excessive shocks. This may damage the bearings.
Material
Block Gauge Body Stainless Steel
MSLF Probe Body 17-7PH
Probe Tip (options) (Note 4) Nylon, Ruby, Silicon Nitride, Tungsten Carbide
Gaiter Fluoroelastomer or Silicon
Cable PUR
Electronics Module ABS
Electronics Interface (Orbit®)
Orbit® Interface options PC: USB, Ethernet®, RS232, R5485, MODBUS® TCP/IP, EtherNet/IP®, Bluetooth™, Profinet®, EtherCat®
Reading Rate Up to 3906 readings per second
Bandwidth of Electronics user selectable 460, 230, 115, 58, 29, 14, 7, 4 Hz
Power 5 ± 0.25 VDC @ 0.06 A typical
○ Note 1: Accuracy 0.1 µm or % whichever greater, assume 20 mm arm for block gauges and Applicable Parallel Flexures
○ Note 2: Repeatability for Flexures depends on the configuration of the tip and holder – see diagram
○ Note 3: DU/0.5/S – Range is at 50 mm from flex point, extension arms will multiply this parameter, for DUSM range is with no extension arm fitted
○ Note 4: Lever Probe has tips in diameters of 2.54 mm, 1,59 mm, 0.79 mm, 0.38 mm mounting thread 1-72 UNF
○ Note 5: Lever Probe accuracy with arm normal to axis of the stylus
○ Note 6: Block gauge tip force is dependent on mounting attitude and spring for the pneumatic block gauge it is also air pressure and balancing spring combination
○ Note 7: Tip Force (gf) at Middle of Range ±30% for MSLF
○ Designation Title/Measurement Range/Type (Spring Actuation, Pneumatic Actuaton, Vacuum Type): DK: Block Gauge, DM: Mini Probe, DU: Parallel Flexures, DUS: Single Leaf Flexures, DUSM:
Miniature Single Leaf Flexure, DL: Lever Probe


○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 973025-3 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
973025-3 Solartron Digital Block Gauge DK/2/S

For a quote, please email us at  [email protected]
