○ Controlled Screw tightening in the range 0.08 – 9Nm. |
○ Serial Manufacture with constant tightening value. |
○ Adjustable Torque Screwdriver with a scale. |
○ 1/4″ female hexagon drive for use with 1/4″ hexagon bits as per DIN 3126 – C 6.3. |
○ The adaptor is also suitable for 1/4″ square drive sockets as per DIN 3124. |
○ Precision radial ball clutch and cam design for controlled bi-directional tightening. The precision mechanism slips very noticeably through when the set torque is reached. |
○ “Positive-Lock” system automatically fixes the set value preventing it from the wrong setting. |
○ Automatically resets to the starting position. |
○ Lightweight construction by virtue of anodized aluminium handgrips. |
Range | (1.2 to 6) N.m [120 to 600] cN.m |
Working accuracy | /- 6 % tolerance of the set torque. Acc. to DIN EN ISO 6789, traceable to national standards. |
Weight | 0.4kg |
Dimensions | 184mm |
EAN | 4002805757062 |
MPN | 8030490 |
Drive Connector | 1/4 inch |
Custom Tariff | 82041100 |
Use CAL 757-06 when ordering calibration services from MRM Metrology
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

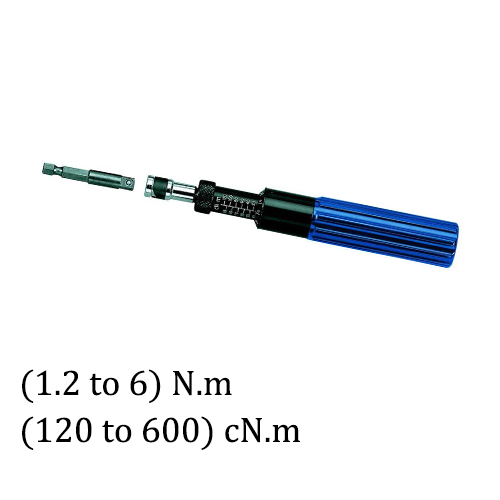

757-06 Gedore Torque Screwdriver
For a quote, please email us at [email protected]
