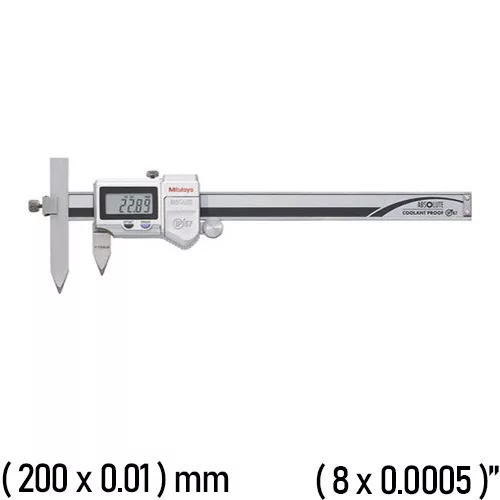

Mitutoyo Offset Centerline Caliper

573-706-20 Mitutoyo Digimatic Offset Centerline Caliper (10 to 200) mm , (0.4 to 8)”

The 573-706-20 Digimatic Offset Centerline caliper ABSOLUTE features main scale jaws that adjust up and down to measure unlevel (different planes) center-to-center distances. The offset centerline caliper takes highly accurate edge-to-center measurements and hole diameters. The centerline caliper is constructed of hardened stainless steel and is IP67 rated for exceptional coolant-proof capabilities, making this caliper ideal on the shop floor.

It comes with a one-year manufacturer’s warranty.
Shop for 573-706-20 Digital Caliper at MRM Metrology, and save.
Buy 573-706-20 Caliper now for the best price in Canada.

Email us for the lowest price.
Click on [email protected] to request a quotation.

SPC
Absolute


Other Models
SKU: 573-706-20 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ SPC output function offers quick and easy data management in real time
○ ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on; overspeed errors are also eliminated
○ Functions include Origin Set, Zero Setting, Power On/Off, Data Output and inch/mm conversion
○ Alarm: Low Voltage, Counting Value Composition Error
○ Constructed of hardened stainless steel for better durability and longevity
○ IP67 protection eliminates dust ingress, protects against temporary water submersion; permits use in environments exposed to cutting oil, dust, etc.
○ Unnecessary to wipe or clean the scale
○ Supplied in fitted plastic case

Range (10 to 200) mm / (0.4 to 8)”
Resolution 0.01 mm / 0.0005″
Accuracy ± 0.0015″
Mass 177 g
Display LCD
Length Standard ABSOLUTE electrostatic capacitance type linear encoder
Max. Response Speed Unlimited
Manufacturer’s Warranty 1 year limited manufacturer’s warranty


Included Items
Battery (938882) SR44 (1 pc)
Battery Life Approx. 5 years under normal use
Optional Items
05CZA624 SPC cable with data switch (1m ; 40”)
05CZA625 SPC cable with data switch (2m ; 80”)

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
573-706-20 Mitutoyo Digimatic Caliper, Offset Centerline

For a quote, please email us at  [email protected]
