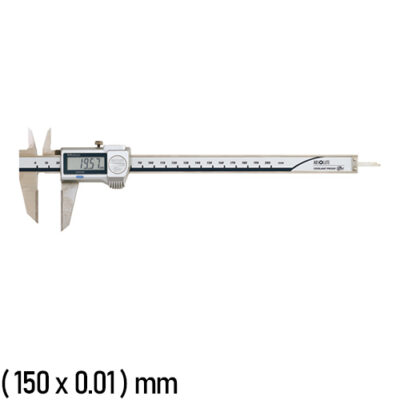

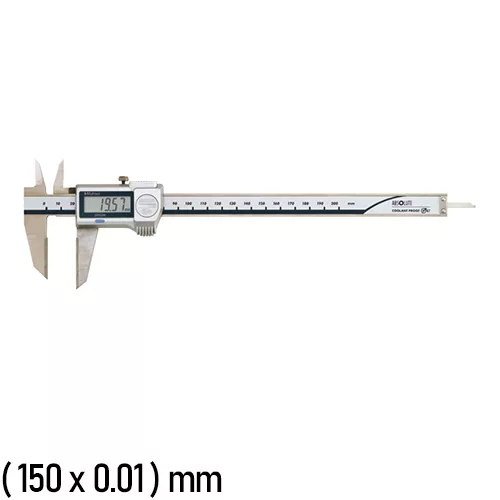

573-676-20 Mitutoyo Digimatic Scribing Caliper

The 573-676-20 ABSOLUTE Scribing caliper features two sets of specially designed jaws for inside and outside dimensions. The jaws are tipped with carbide and are sharper than standard caliper jaws to enable fine scribing on workpieces when needed. The neck caliper is constructed of hardened stainless steel and is IP67 rated for exceptional coolant-proof capabilities, making this caliper ideal for the shop floor. Step and depth measurements are possible with the depth bar.

It comes with one year limited manufacturer’s warranty.
Shop for 573-676-20 at MRM Metrology and use CAL 573-676-20 when ordering calibration services.

Absolute
SPC
Other Models

SKU: 573-676-20 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Jaws are tipped with carbide for scribing, as well as, better accuracy and longer performance
○ SPC output function offers quick and easy data management in real time
○ ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on; overspeed errors are also eliminated
○ Functions include Origin Set, Zero Setting, Power On/Off, Data Output
○ Alarm: Low Voltage, Counting Value Composition Error
○ Constructed of hardened stainless steel for better durability and longevity
○ IP67 protection eliminates dust ingress, protects against temporary water submersion; permits use in environments exposed to cutting oil, dust, etc.
○ Unnecessary to wipe or clean the scale
○ Supplied in fitted plastic case

Range (0 to 150) mm
Resolution 0.01 mm
Accuracy ± 0.02 mm
Mass 166 g
Display LCD
Length Standard ABSOLUTE electrostatic capacitance type linear encoder
Max. Response Speed Unlimited
IP Rating IP67
SPC Output Yes
Manufacturer’s Warranty 1 year limited manufacturer’s warranty

Caliper 573-676 data sheet

573-676 Caliper dimensions

Included Items
Battery (938882) SR44 (1 pc)
Battery Life Approx. 3.5 years under normal use
Optional Items
05CZA624 SPC cable with data switch (1m / 40”)
05CZA625 SPC cable with data switch (2m / 80”)

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
573-676-20 Mitutoyo Digimatic Caliper, Scribing

For a quote, please email us at  [email protected]
