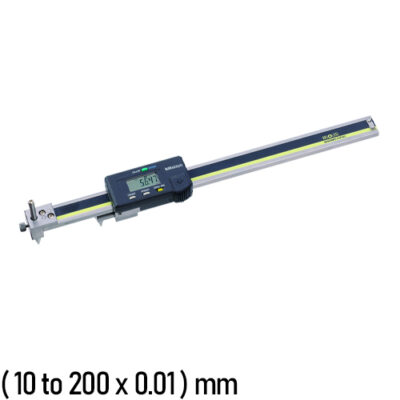

573-118-10 Mitutoyo Caliper

573-118-10 Mitutoyo Digimatic Caliper (10 to 200) mm

The 573-118-10 Digimatic Caliper with Back-Jaw Centerline delivers accurate, repeatable center-to-center and edge-to-center distance measurements with unrestricted speed. The back-jaw centerline caliper has jaws on the back of the slider so measurements can easily be read upside down. An offset value setting function allows direct readings of pitch measurements. Measurements are displayed on an easy-to-read LCD readout.

It comes with a one-year manufacturer’s warranty.
Shop for 573-118-10 Digital Caliper at MRM Metrology, and save.
Buy 573-118-10 Caliper now for the best price in Canada.

Email us for the lowest price.
Click on [email protected] to request a quotation.


Other Models

SKU: 573-118-10 Category:

Product Description

  • Features
  • Specifications

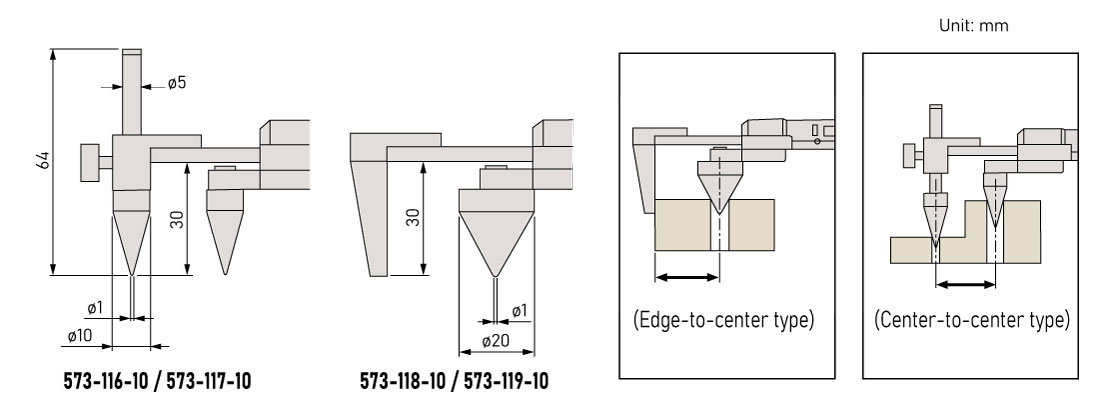

  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
○ Origin reset is not required even when data is re-displayed after disappearance due to insufficient illumination during use
○ Stainless steel construction protects caliper components and ensures accurate performance for longer
○ SPC output function allows for fast and easy data management in real time
○ Zero-setting, Origin Set, Power On/Off, and Data output
○ Alarm: Low voltage, Counting value composition error
○ Unnecessary to wipe or clean the scale
○ Supplied in a fitted wooden case

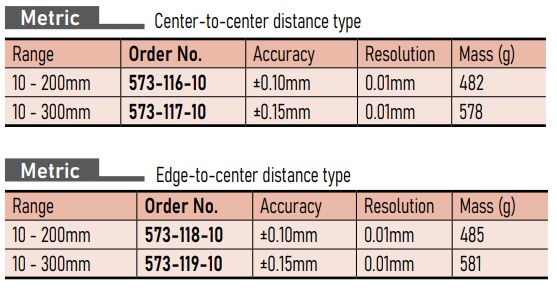

Range (10 to 200) mm
Resolution 0.01 mm
Accuracy ± 0.10 mm
Mass 485 g
Display LCD
Length Standard ABSOLUTE electrostatic capacitance type linear encoder
Max. Response Speed Unlimited
Warranty One year limited manufacturer’s warranty


Included Items
Battery (938882) SR44 (1 pc)
Battery Life Approx. 5 years under normal use
Optional Items
959143 Data hold unit
959149 SPC cable with data switch (1m)
959150 SPC cable with data switch (2m)

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 573-118-10 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
573-118-10 Mitutoyo Digimatic Caliper

For a quote, please email us at  [email protected]
