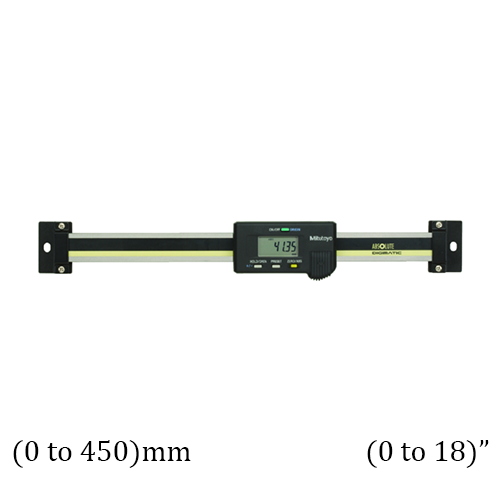

The 572-474 SSD-E Digimatic scale unit facilitates mounting on jigs, tools, and small machine tools to enable accurate positioning. A built-in ABSOLUTE scale is also included, using the Mitutoyo ABS point, which doesn’t require zero-set when powered on. In addition, Overspeed errors have been eliminated which improves reliability.
Made in the USA and comes with a one-year manufacturer’s warranty.
Shop for 572-474 Scale Unit at MRM Metrology, and save.
Buy 572-474 now for the best price.
Email us for the lowest price.
Click on [email protected] to request a quotation.
| â—‹ ORIGIN key allows setting of an absolute zero point to be used as reference in subsequent measurements |
| â—‹ Horizontal display according to the scale mounting direction |
| â—‹ Long battery life for easier maintenance |
| â—‹ Equipped with an output port to transfer measurement data to implement in control and gaging systems |
| â—‹ EC counters are available as external display units |
| Range | (0 to 450)mm , (0 to 18)” |
| Resolution | 0.0005″ |
| Accuracy | 0.04mm , 0.002″ |
| Units | Inch / Metric |
| Model | SD-18″E” |
| Battery | SR44 (1 pc.) 938908 |
| Repeatability | 0.0005″ |

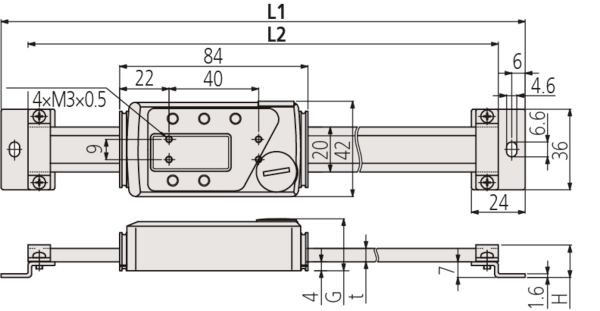

| L1 | 594mm |
| L2 | 570mm |
| Depth including the screw on the rear of the display | Less than 3mm |
| Mass | 760g |
| Warranty | One year limited manufacturer’s warranty |
| t | 6 mm |
| L1 | 594 mm |
| L2 | 570 mm |
| H | 14.6 mm |
| Optional Accessories |
| 905338 |
| 905409 |
| 905689 |
| 905690 |
| 905691 |
| 905692 |
| 905693 |
| 905694 |
â—‹ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
â—‹ Use CAL 572-474 when requesting calibration services from MRM Metrology.
MRM provides Calibration and Repair Services for the
572-474 Mitutoyo Digimatic Scale Unit
For a quote, please email us at  [email protected]
