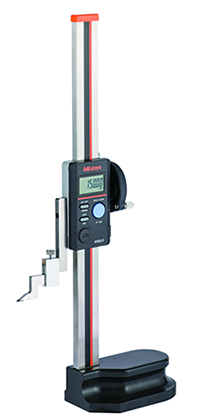

570-413 Mitutoyo Digimatic Height Gauge, (0 to 450) mm , (0 to 18)”

The 570-413 Digimatic Height Gauge features a large slider feed wheel for easy, smooth measurements. The built-in ABSOLUTE Linear Encoder eliminates the need for setting the reference point at every power on, making accurate measurements quick and easy.

The hand-operated slider, with fine adjustment carriage, makes movements smooth and measurements precise. It includes a carbide-tipped long scriber which is highly durable and creates accurate marks on your workpiece.

It comes with a one-year manufacturer’s warranty.
Shop for 570-413 Digital Height Gauge at MRM Metrology, and save.
Buy 570-413 Height Gauge now for the best price.

Email us for the lowest price.
Click on [email protected] to request a quotation.

Absolute


Other Models

SKU: 570-413 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Large clamp lever provides reliable slider clamp operation
○ SPC output function with optional water-resistant SPC cable allows for quick and easy data management in real time
○ ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on; overspeed errors are also eliminated
○ Display features large LCD characters (11 mm in height) for easier measurement reading and reduced eye strain
○ Large function buttons on display are positioned for easy operation
○ Durable, rigid construction ensures repeatable measurements over a longer lifespan
○ Base is shaped to provide a secure grip
○ Functions include Origin setting, ABS/INC switching, Power On/Off, -/+ switching, Data hold, Data output and inch/mm conversion
○ Alarm: Low Voltage, Counting Value Composition Error

Range (0 to 450) mm , (0 to 18)”
Resolution 0.01 mm , 0.0005″
Accuracy ± 0.05 mm , ± 0.002″
Mass 5.9 kg
Display LCD
Length Standard ABSOLUTE electrostatic capacitance type linear encoder
Max. Response Speed Unlimited
Warranty One-year limited manufacturer’s warranty
570-413 replaces 570-313


Model L A B C
570-402 507 mm , 20.0″ 160 mm , 6.3″ 122 mm , 4.8″ 72.6 mm , 2.86″
570-404 812 mm , 32.0″ 181 mm , 7.13″ 142 mm , 5.6″ 74.1 mm , 2.92″
570-412 507 mm , 20.0″ 160 mm , 6.3″ 122 mm , 4.8″ 72.6 mm , 2.86″
570-414 812 mm , 32.0″ 181 mm , 7.13″ 142 mm , 5.6″ 74.1 mm , 2.92″
570-413 662 mm , 26.1″ 181 mm , 7.13″ 142 mm , 5.6″ 74.1 mm , 2.92″


Included Items
Battery SR44 (1 pc.) , 938882
Battery Life Approx. 20,000 hours under normal use
07GZA000 Carbide-tipped scriber
05GZA033 Scriber clamp
901385 Scriber clamp
Optional Items
905338 SPC cable (40” , 1m)
905409 SPC cable (80” , 2m)
953638 50 mm Holding Bar for test indicator
953639 2” Holding Bar for test indicator
902053 Swivel clamp used with holding bar (metric)
900322 Swivel clamp used with holding bar (inch)

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 570-413 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
570-413 Mitutoyo Digimatic Height Gauge

For a quote, please email us at  [email protected]
