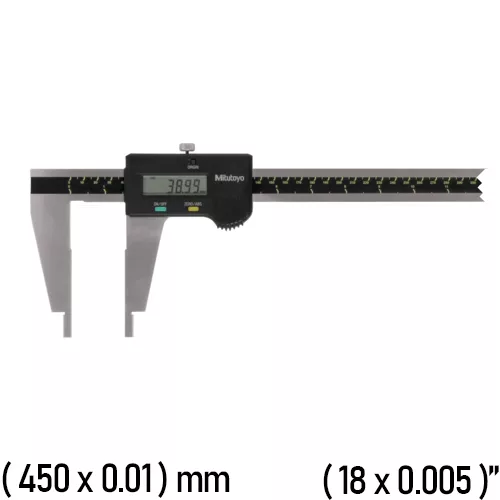

Mitutoyo Nib-Style Jaws Caliper

550-223-10 Mitutoyo Nib Style Jaws Caliper (0 to 450) mm , (0 to 18)”

The 550-223-10 Digimatic Caliper features nib style jaws with rounded measuring faces to fit rounded surfaces closer to make highly accurate inside dimension measurements. It also has a high-resolution Vernier scale with a 14-degree face angle which allows easier reading and helps prevent parallax error in the measurement.

Made in Japan and comes with a one-year manufacturer’s warranty.
Shop for 550-223-10 Digital Caliper at MRM Metrology, and save.
Buy 550-223-10 Caliper now for the best price.

Email us for the lowest price. Click on [email protected] to request a quotation.

Absolute
SPC
Other Models
SKU: 550-223-10 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Can measure both inside and outside dimensions with a specially shaped jaw
○ The digital display can reduce human error by preventing incorrect reading of measurement results.
○ Data output function allows integration into statistical process control and measurement systems and offers quick and easy data management in real time
○ ID measurement value: displayed value + (a compensation value displayed on the main unit).

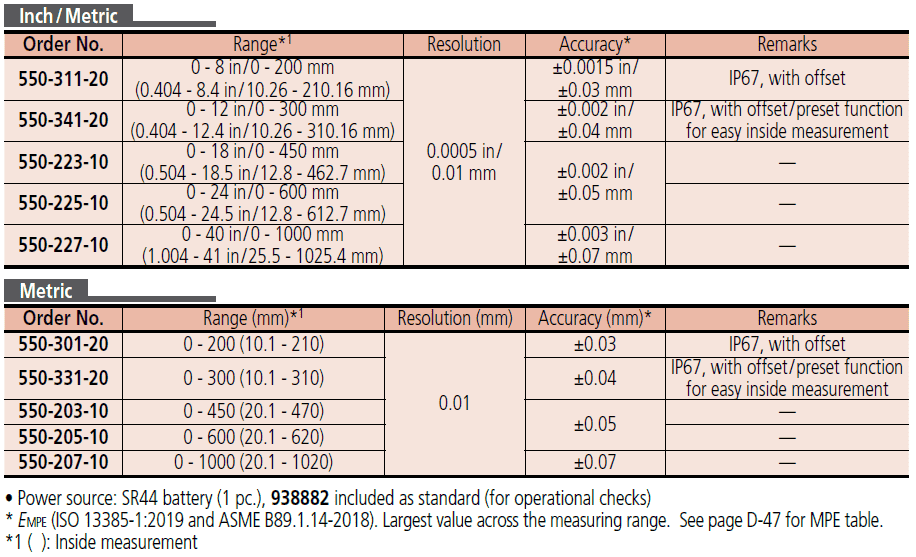

Range (0 to 450) mm , (0 to 18)”
Inside Measurement Range (12.8 to 462.7) mm , (0.504 to 18.5)”
Resolution 0.01 mm , 0.0005″
Accuracy ±0.05 mm , ± 0.002″

Maximum Permissible Errors L (mm) EMPE (mm) SMPE (mm)
  12.8 (0) ≤ L ≤ 200 ±0.03 ±0.03
  200 < L ≤ 400 ±0.04 ±0.04
  400 < L ≤ 600 ±0.05 ±0.05

Warranty One-year limited manufacturer’s warranty


INCLUDED
Battery (938882) SR44 (1 pc)
Battery Life Approx. 5 years under normal use

OPTIONAL
Order No. Type Description
264-020 – USB Input Tool Series , USB Keyboard Signal Conversion Type , IT-020U
959149 C Connection cable for IT /DP/MUX (1 m)
959150 C Connection cable for IT /DP/MUX (2 m)
06AFM380C C USB Input Tool Direct (2 m)
02AZD730G IP67 U-WAVE-T
02AZD880G Buzzer U-WAVE-T
02AZE200 – U-WAVE-T Mounting Bracket
02AZD790C C Connection cable for U-WAVE-T (160 mm)
02AZE140C C Connection cable for U-WAVE-T foot-switch

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 550-223-10 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
550-223-10 Mitutoyo Caliper, Digimatic Nib Style Jaws

For a quote, please email us at  [email protected]
