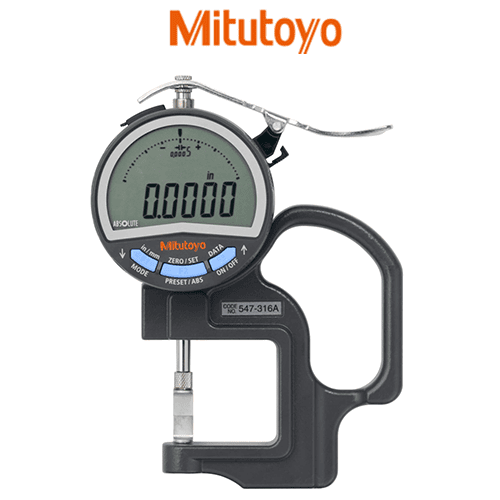

547-316A Mitutoyo Thickness Gauge

547-316A Mitutoyo Thickness Gauge 10 mm , 0.47″

The 547-316A ABSOLUTE Digital Groove Thickness Gauge can measure the thickness of grooves in a wide range of applications. The blade anvil is designed to reach into grooves to easily perform measurements that are otherwise extremely difficult to achieve with other indicators or instruments.

These gages utilize the Mitutoyo ID-C and ID-S Digimatic indicators to provide error-free LCD readings. The grip handle, easy-to-reach lifting lever and spring-loaded spindle allows for quick and easy measurements without sacrificing accuracy.

It comes with a one-year manufacturer’s warranty.
Shop for 547-316A Thickness Gauge at MRM Metrology Inc. and save
Buy 547-316A for the best price in Canada.

Email us for the lowest price.
Click on [email protected] to request a quotation.


Indicators

Other Models
SKU: 547-316A Category:

Product Description

  • Features
  • Specifications

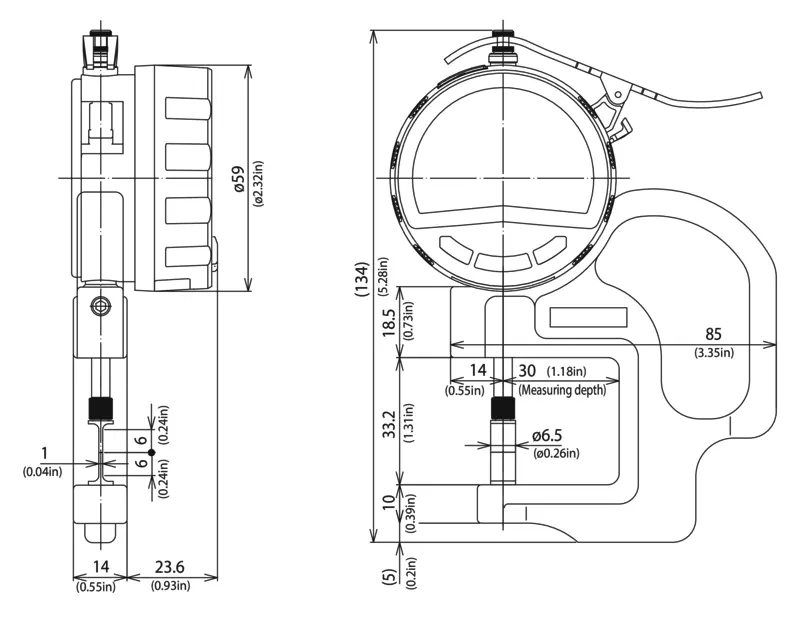

  • Dimensions
  • Accessories
  • Downloads
  • Calibration
○ The Thickness Gages offer a quick and efficient means of inspection with their convenient grip handle, thumb trigger and spring-loaded spindle
○ Various models cover a wide range of applications
○ Wide range of applications with various types of measuring faces
○ Groove thickness measurement (blade anvil)

Range (0 to 0.4)”
Resolution 0.0005″ , 0.01 mm
Accuracy ±20 µm
Indicator Type Digimatic IDS
Indicator No 543-712-10BS
Measuring Force 1.5 or lessN
Spindle Material Ceramic
Parallelism 0.01 mm , 0.0005″
Anvil Material Carbide
ABS / INC (INC ZERO) Yes
Function lock Yes
GO/±NG judgement Yes
DATA/HOLD Yes
Counting direction switchable Yes
MAX/MIN/RANGE Yes
Calculation function (with formula) Yes
Digimatic data output Yes
Digimatic S1 Bidirectional interface Yes
Analog bar resolution selection Yes
Power Supply 1 battery CR2032 (3V)
Battery Life Continuous use: approx. 2700h
Digital Scale Electrostatic capacitance type absolute linear encoder
Warranty One-year limited manufacturers warranty

547-316A replaces 547-316S

547-316S

905338 SPC cable (1m / 40″)
905409 SPC cable (2m / 80″)
21AZB149 Spindle lifting lever (stroke 12.7 mm / 0.5″)

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 547-316A when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
574-316A Mitutoyo Thickness Gauge

For a quote, please email us at  [email protected]
