547-217A Mitutoyo Digital Depth Gauge (0 to 8)"

547-217A Mitutoyo Digimatic Depth Gauge (0 to 8)”

The 547-217A Digimatic Depth Gauge offers great versatility for measuring a range of depths with extension rods up to 200 mm/8”. The contact point of the depth gauge is a carbide-tipped ball point.

It features easy-to-read digital display effectively preventing misreading. An analog bar indicator on the LCD is convenient for observing subtle movements such as the approach to tolerance. The data output function allows integration into statistical process control and measurement systems.

It comes with a one-year manufacturer’s warranty.
Shop for 547-217A Digimatic Depth Gauge at MRM Metrology and save.
Buy 547-217A Digital Depth Gauge now for the best price.

Best Digimatic Depth Gauge In Its Class


Click on [email protected] to request a quotation.


Indicator
543-712B

Other Models

SKU: 547-217A Category:

Product Description

  • Features
  • Specifications
  • Dimension
  • Accessories
  • Downloads
  • Calibration

○ SPC output function allows for quick and easy data management in real time
○ ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on; overspeed errors are also eliminated
○ Functions include Origin Set, Zero Setting, Automatic Power On/Off and inch/mm conversion (on inch/metric models only)
○ Alarm: Low Voltage, Counting Value Composition Error
○ Supplied in a fitted plastic case

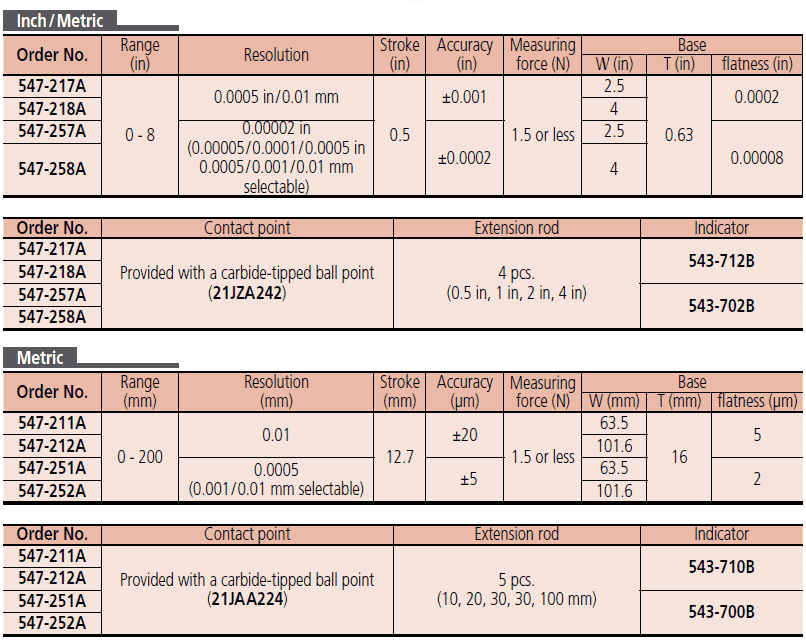

Range (0 to 200) mm , (0 to 8)”
Resolution 0.01 mm , 0.0005″
Accuracy ± 0.001″
Measuring Force 1.5 N or less
Flatness of reference surface base 5 µm , 0.0002″
Stroke 0.5″
Contact Point Carbide-tipped ball point
Extension Rods (0.5, 1, 2, 4)”
Indicator 543-712B
Display LCD
SPC Output Yes
Warranty One-year limited manufacturer’s warranty
Replacement 547-217A replaces 547-217S


Included
Extension Rods (0.5, 1, 2, 4)”
Contact Point Carbide-tipped ball point 21JZA242
Optional
Order No. Type Description
264-020 – USB Input Tool Series
USB Keyboard Signal
Conversion Type IT-020U
06AGL011 SF Connection cable (1 m)
06AGL021 SF Connection cable (2 m)
06AGQ001F SF USB Input Tool Direct (2 m)
02AZG011 SF Connection cable for U-WAVE-T (160 mm)
02AZG021 SF Connection cable for U-WAVE-T for foot switch
264-622 IP67 U-WAVE-TM
264-623 Buzzer U-WAVE-TM
02AZD810D – U-WAVE-R
02AZF670 U-WAVE-TM mounting bracket
For Digimatic Indicator
264-626 IP67 U-WAVE-TMB
264-627 Buzzer U-WAVE-TMB
02AZF700 – Connecting unit for U-WAVE-TM/TMB

Base Size 2.5 x .63″ / 0-8″



○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 547-217A when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
547-217A Mitutoyo Digimatic Depth Gage

For a quote, please email us at  [email protected]
