| ○ Features both a Key- Lock and Parameter-Lock to prevent accidental changing of settings during operation |
| ○ Improved parameter setting software makes easy to set all available parameters (optional) |
| ○ Determine and upload the proper coefficients for calculation (optional) |
| ○ Fast measurement frequency allows the user to increase the number of readings per second from 10 to 50 |
| ○ Allowing higher accuracy measurements of TIR and MAX/MIN |
| ○ An analog bar provides easy-to-read values when scanning for Max, Min, and TIR Values |
| ○ Performs internal calculations using the formula Ax+B+Cx-1 (assuming spindle displacement as x) |
| ○ The specified coefficients A, B and C can be set with respect to the purpose of measurement or dimensions of the fixtures |
| ○ Allows you to read your measurements directly, without the need for conversions |
| Range | (0 to 12.7) mm , (0 to 0.5)” |
| Resolution (selectable) | (0.001 / 0.01) mm , (0.00005 / 0.0001 / 0.0005)” |
| Accuracy | ± 0.00012″ |
| Stem Diameter | Ø 8 mm |
| Measuring Force | 1.5N or less |
| Remarks | Thread ISO/JIS type |
| Display | LCD |
| Type | ISO/JIS |
| Battery | CR2032 (1 pc.), 05SAA217 |
| Battery Life | Approx. 12 months under normal use |
| Max. Response Speed | Unlimited |
| Length Standard | ABSOLUTE electrostatic capacitance type linear encoder |
| Warranty | One year limited manufacturers warranty |
| 543-341B-10 replaces 543-341B |
| 05SAA217 | Battery |
| 905338 | Connecting Cable (1m) |
| 905409 | Connecting Cable (2m) |
| 21EZA313 | Parameter Setting USB Cable |
| 21EZA198 | Spindle lifting lever (12.7mm ISO/JIS type) |
| 21EZA199 | Spindle lifting lever (12.7mm ASME/AGD type) |
| 21EZA105 | Lifting Knob (12.7mm/.5” ISO/JIS Models) |
| 21EZA150 | Lifting Knob (12.7mm/.5” ASME/AGD Models) |
| 21EZA197 | Lifting Knob (for 25.4/1”mm models) |
| 21EZA200 | Lifting Knob (for 50.8/2”mm models) |
| 540774 | Spindle lifting cable |
○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 543-341B-10 when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

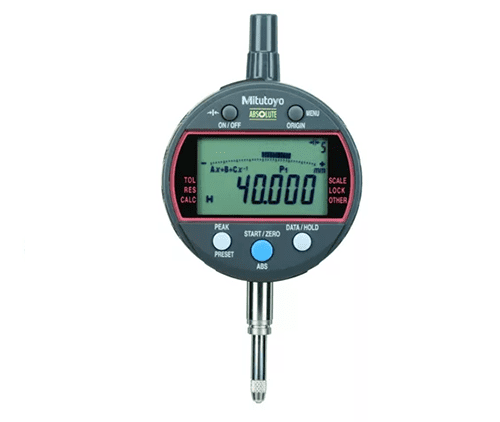

543-341B-10 Mitutoyo Digimatic Indicator
For a quote, please email us at [email protected]
