Mitutoyo Bore Gauge

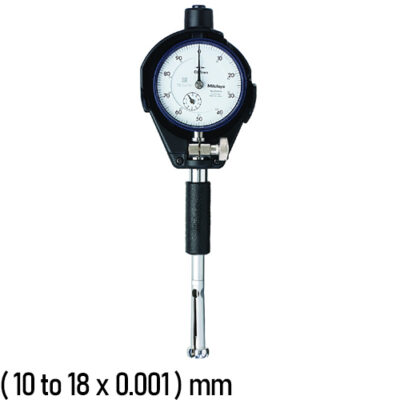

526-125-20 Mitutoyo Bore Gauge Extra Small Holes (10 to 18) mm

The 526-125-20 Bore Gauge for extra small holes converts the radial displacement of the split-ball contact to axial displacement of the measuring rod for highly accurate measurements of holes as small as 0.95mm in diameter.

It comes with a one-year manufacturer’s warranty.
Shop for 526-125-20 Bore Gauge at MRM Metrology, and save.
Buy 526-125-20 Gauge now for the best price.

Email us for the lowest price.
Click on [email protected] to request a quotation.


Other Models
SKU: 526-125-20 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Its a precision bore gauge that can make quick and accurate measurements of small hole diameters.
○ The angular Indicator fitted to this instrument can be replaced with custom-supplied Digimatic Indicator if needed.
○ The contact point is hard chrome-coated.

Range (10 to 18) mm
Graduation 0.001 mm
Accuracy 0.004 mm
Indication Stability 0.002 mm
No of Anvils 8
No of Needles 1
Probe Depth 62 mm
Gauge Stem Ø 8 mm
Warranty One-year limited manufacturers warranty

526-125-20 replaces 526-125


Optional Items
215-120-10 Bore gage stand

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 526-125-20 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
526-125-20 Mitutoyo Bore Gauge Extra Small Holes

For a quote, please email us at  [email protected]
