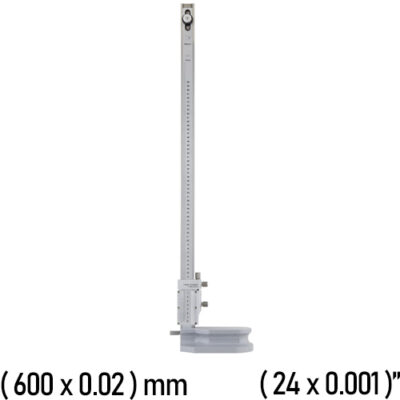

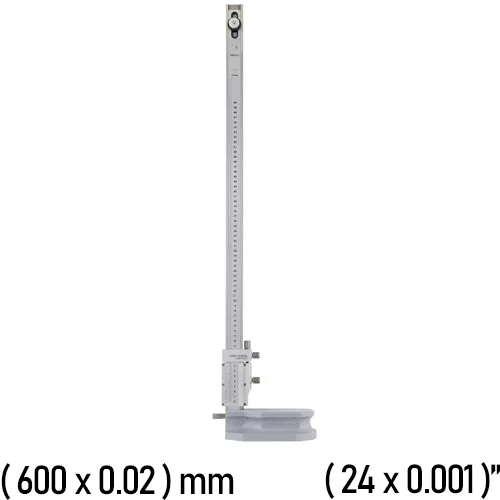

514-107 Mitutoyo Height Gauge

514-107 Mitutoyo Height Gauge, Vernier

Vernier Height Gauge Series 514-Standard Height Gage with Adjustable Main Scale. Zero reference points can be adjusted. Stain chrome finished scales for glare-free reading.
Shop for MRM 514-107 at MRM Metrology


Range (0 to 600) mm / (0 to 24)”
Graduation 0.02 mm / 0.001″
Accuracy ± 0.002″
SKU: 514-107 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Zero reference point can be adjusted
○ Stain chrome finished scales for glare-free reading
○ Extra-large base for rigidity
○ Optional magnifier for easier reading
○ Carbide-tipped scriber is provided

Range (0 to 600) mm / (0 to 24)”
Graduation 0.02 mm / 0.001″
Accuracy ± 0.002″
Mass 7.4 kg
Main scale adjustment 15 mm or 25 mm
Slider fine feed 4 mm, 6 mm, 7 mm or 20 mm
Standard Scriber Provided Carbide-tipped scriber (07GZA000) and scriber clamp (05GZA033)

07GZA003 Magnifier for 300 mm, 450 mm, 600 mm models
07GZA015 Magnifier for 1000 mm and 1500 mm models
953638 Holding bar for test indicator (length: 50 mm)”
902053 Swivel clamp used with holding bar

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
514-107 Mitutoyo Height Gauge, Vernier

For a quote, please email us at  [email protected]
