Mitutoyo Dial Caliper

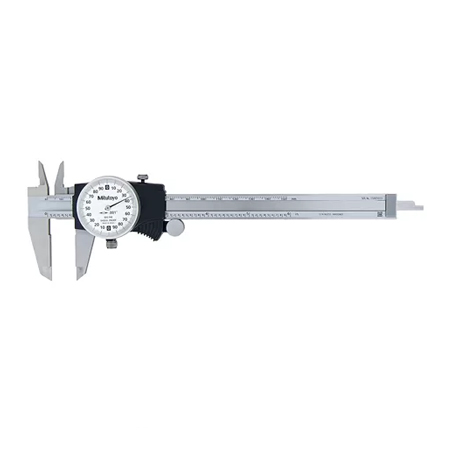

505-740 Mitutoyo Dial Caliper

The 505-740 Mitutoyo Caliper 505 series dial caliper uses a combination of a vernier scale and a dial whose pointer travels one rotation for each 0.1” measured to perform precise outside diameter (OD), inside diameter (ID), depth, and step measurements.


Range (0 to 6)”
Graduation 0.001″
Accuracy ± 0.001″
Other Models

Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ New designed dial movement for ultra smooth sliding and high-shock protection
○ Improved finish on sliding surfaces for longevity
○ New face for improved readability
○ Removal of TiN coating on sliding surfaces without sacrificing wear life
○ Lock screw for dial bezel and for holding the sliding jaw position
○ Supplied in fitted plastic case
○ Measures OD, ID, depth and steps
○ Some models available with carbide-tipped OD and ID jaws

Range (0 to 6)”
Graduation 0.001″
Accuracy ± 0.001″
Revolution 0.2″
Warranty One (1) year limited manufacturer’s warranty



505-742 specification

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
505-740 Mitutoyo Dial Caliper

For a quote, please email us at  [email protected]
