○ Character height on the LCD display increased from 7.4 mm to 9 mm for improved readability |
○ Redesigned battery cover eliminates the need for a screwdriver |
○ ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on |
○ Origin reset is not required even when data is re-displayed after loss due to insufficient illumination during use |
○ Stainless steel construction protects caliper components and ensures accurate performance for longer duration |
○ Auto On/Off, Origin Set, Zero-Setting and inch/mm conversion |
○ Alarm: Counting value composition error |
○ IP67 protection eliminates dust ingress, protects against temporary water submersion; permits use in environments exposed to coolant, water, oil, dust, etc. |
○ Unnecessary to wipe or clean the scale |
○ Supplied in fitted plastic case |
Range | (0 to 200) mm , (0 to 8)” |
Resolution | 0.01 mm , 0.0005″ |
Accuracy | ± 0.001″ |
Repeatability | 0.01 mm , 0.0005” |
Display | LCD |
Length Standard | ABSOLUTE electromagnetic induction linear encoder |
Max. Response Speed | Unlimited |
Dust/Water Protection Level | IP67 |
Warranty | One Year limited manufacturer’s warranty |
Included Items | |
Battery (938882) | SR44 (1 pcs) |
Battery Life | Approx. 5 years under normal use |
Optional Items | |
05CZA624 | SPC cable with data switch (1m / 40”) |
05CZA625 | SPC cable with data switch (2m / 80”) |
○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 500-753-20 when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

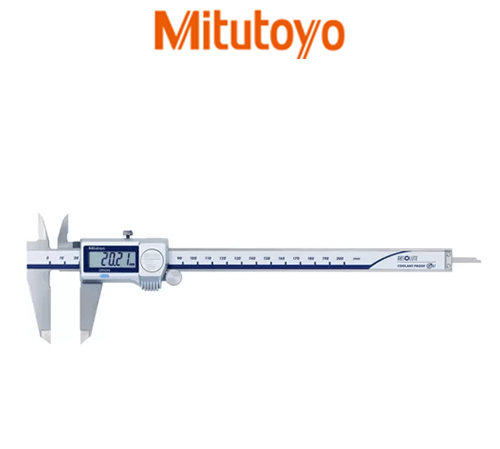

500-753-20 Mitutoyo Digimatic Caliper
For a quote, please email us at [email protected]
