369-411-20 Disc Micrometers SERIES 369, 227 — Non-rotating Spindle Type

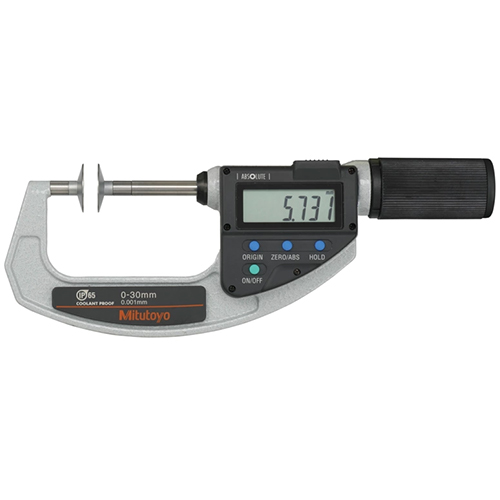

369-411-20 Mitutoyo Digimatic Disk Micrometer, (0 to 30) mm

The 369-411-20 Digimatic Disk Micrometer, is a Quickmike type providing a speedy spindle feed of 10 mm per thimble rotation, which enables widely differently sized features to be measured quickly. The non-rotating spindle type measures “root tangent length” of spur gears and helical gears.

The flatness and thinness of the discs allow for measurements in tight spaces with reliability. A ratchet-stop mechanism helps provides uniform pressure on a workpiece for precise, repeatable measurements and eliminates over-speed error. Measurements are displayed on an easy-to-read LCD readout.

Made in Japan and comes with a one-year manufacturer’s warranty.
Shop for 369-411-20 Disc Micrometer MRM Metrology, and save.
Buy 369-411-20 Micrometer now for the best price.

Email us for the lowest price.
Click on [email protected] to request a quotation.

SPC
SKU: 369-411-20 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Can be used for making root tangent measurements on spur gears and helical gears
○ Provides a speedy spindle feed of 10 mm per thimble rotation, which enables widely differently sized features to be measured quickly
○ ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
○ Heat-insulated frame, tapered (on the anvil side) for hard-to-reach places
○ Non-rotating spindle type
○ Equipped with Ratchet Stop for constant measuring force

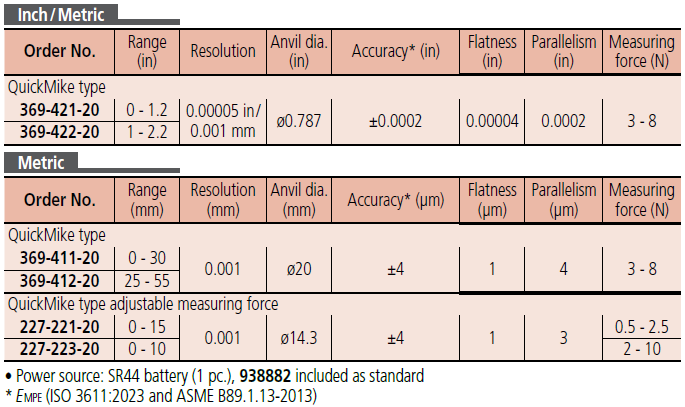

Range (0 to 30) mm
Resolution 0.001 mm
Accuracy ± 4 µm
Anvil Diameter 20 mm
Flatness 1 µm
Parallelism 4 µm
Graduation 0.01 mm
Measuring Force (3 to 8) N
Unit of Measurement Metric
Type Quickmike Type
Ratchet/Thimble Ratchet Stop
Display LCD
IP Rating IP65
Manufacturer’s Warranty One-year limited manufacturer’s warranty


INCLUDED ITEMS
Battery (938882) SR44 (1 pc)
OPTIONAL ITEMS
264-020 USB Input Tool Series
USB Keyboard Signal
Conversion Type IT-020U
05CZA662 Connection cable (1 m) – Type B
05CZA663 Connection cable (2 m) – Type B
06AFM380B USB Input Tool Direct (2 m) – Type B
02AZD730G U-WAVE-T – Type IP67
02AZD880G U-WAVE-T – Type Buzzer
02AZE200 U-WAVE-T mounting bracket
02AZD790B Connection cable for U-WAVE-T (160 mm) – Type B
02AZE140B Connection cable for U-WAVE-T for Foot Switch – Type B
264-622 U-WAVE-TM – Type IP67
264-623 U-WAVE-TM – Type Buzzer
264-626 U-WAVE-TMB – Type IP67
264-627 U-WAVE-TMB – Type Buzzer
02AZF310 Connecting unit for U-WAVE-TM/TMB – Type IP67

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 369-411-20 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
369-411-20 Mitutoyo Digital Disk Micrometer

For a quote, please email us at  [email protected]
