CDI Torque Wrench Interchangeable Head

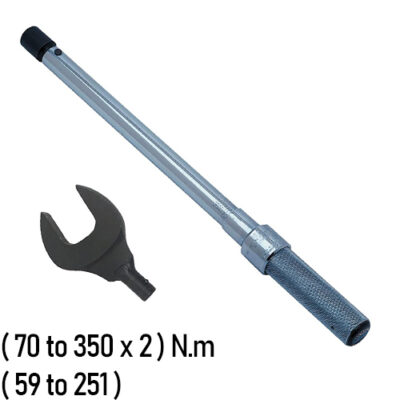

350NMIMH CDI Torque Wrench, Interchangeable Head

These interchangeable head torque wrenches are designed for use on production lines and other applications where a specific torque is required for repetitive operations.
Pre Set, Torque wrenches are designed for use on production lines and other applications where a specific torque is required for repetitive operations.


Range (70 to 350) N.m / (59 to 251)
Graduation 2 N.m
Accuracy ± 4% of indicated value, in direction of torque indicator, from 20% to 100% of full scale
Other Models

SKU: 350NMIMH Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Other Models
  • Downloads
  • Calibration

â—‹ Interchangeable heads permit ratcheting, fixed, or open end torquing capability with adjustable torque wrench bodies
â—‹ A pusd of the pin provides quick-change action, with a wide range of head styles to choose from
â—‹ Micrometer Type Adjustment-ensures fast, accurate settings and changes
â—‹ Design fabrication and materials used have been developed in coordination with major manufactures
â—‹ Models are set at the factory to the customer specified torque setting
â—‹ Dual Scale

Range (70 to 350) N.m
Range English (59 to 251)
Graduation 2 N.m
Accuracy ± 4% of indicated value, in direction of torque indicator, from 20% to 100% of full scale
OAL in 24 1/2
Shank Size X

Single Scale Shank Size English Range Incr. OAL
75MFIMHSS J (5 to 75) ft.lbf 0.5 ft.lbf 15.8″
150MFIMHSS Y (20 to 150) ft.lbf 1 ft.lbf 17.3″
250MFIMHSS Y (30 to 250) ft.lbf 1 ft.lbf 22.7″

Dual Scale Shank Size N.m Range Incr. English Range OAL Inch
50NMIMH J (10 to 50) N.m 0.5 (9.2 to 35) 17
100NMIMH J (20 to 100) N.m 0.5 (16.5 to 71.9) 20
200NMIMH Y (40 to 200) N.m 2 (37 to 140) 22 1/2
350NMIMH X (70 to 350) N.m 2 (59 to 251) 24 1/2
800NMIMH* Z (150 to 800) N.m 5 (129 to 572) 48

*Note: 800NMIMH & 600T-I new dual pin “Z” receivers accep only dual pin interchangeable heads.


Single Scale Shank Size English Range Incr. OAL
75MFIMHSS J (5 to 75) ft.lbf 0.5 ft.lbf 15.8″
150MFIMHSS Y (20 to 150) ft.lbf 1 ft.lbf 17.3″
250MFIMHSS Y (30 to 250) ft.lbf 1 ft.lbf 22.7″

Dual Scale Shank Size N.m Range Incr. English Range OAL Inch
50NMIMH J (10 to 50) N.m 0.5 (9.2 to 35) 17
100NMIMH J (20 to 100) N.m 0.5 (16.5 to 71.9) 20
200NMIMH Y (40 to 200) N.m 2 (37 to 140) 22 1/2
350NMIMH X (70 to 350) N.m 2 (59 to 251) 24 1/2
800NMIMH* Z (150 to 800) N.m 5 (129 to 572) 48

*Note: 800NMIMH & 600T-I new dual pin “Z” receivers accep only dual pin interchangeable heads.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
350NMIMH CDI Torque Wrench, Interchangeable Head

For a quote, please email us at  [email protected]
