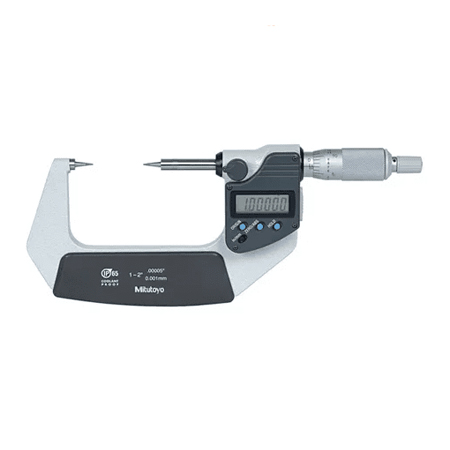

342-352-30 Mitutoyo Point Micrometer

The 342-352-30 Digimatic pointed digital micrometer features 15-degree pointed anvil and spline to measure small grooves on parts or workpieces along with keyways and web thicknesses on drills with superior accuracy. The pointed anvil and spindle contacts are ideal at measuring small, hard-to-reach areas which a normal or reduce-diameter spindle and anvil are unable to access. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements. Measurements are displayed on an easy-to-read LCD readout.

It comes with one year limited manufacturer’s warranty.
Shop for 342-352-30 at MRM Metrology and use CAL 342-352-30 when ordering calibration services.

SPC

Other Models
SKU: 342-352-30 Category:

Product Description

  • Features
  • Specifications
  • Dimension
  • Accessories
  • Downloads
  • Calibration

○ 15 Degree and 30 degree measuring points are available
○ IP65 protection permits use in environments exposed to cutting oil, coolant, dust, etc., for use on most shop floor environments
○ Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant pre-set force
○ SPC output function allows for quick and easy data management in real time
○ Functions include Origin Set, Zero/ABS Setting, Data Hold, Function Lock and inch/mm conversion
○ Alarm: Low Voltage, Counting Value Composition Error
○ Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
○ Frame has a non-slip finish for better grip in shop environments
○ Supplied in fitted plastic case

Range (25.4 to 50.8) mm / (1 to 2)”
Resolution 0.001 mm / 0.00005″
Accuracy ± 2µm / ± 0.0001″
Mass 470 g
Contact Point 15
Display LCD
Manufacturer’s Warranty 1 year limited manufacturer’s warranty

Mitutoyo Micrometer Point


INCLUDED ITEMS
Battery (938882) SR44 (1 pc)
Battery Life Approx. 2.4 years under normal use
OPTIONAL ITEMS
938882 Battery
05CZA662 SPC cable with data switch 1 m / 40”
05CZA663 SPC cable with data switch 2 m / 80”

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
342-352-30 Mitutoyo Point Micrometer, Digimatic

For a quote, please email us at  Service@MRMmetrology.com
