342-351-30 Mitutoyo Micrometer

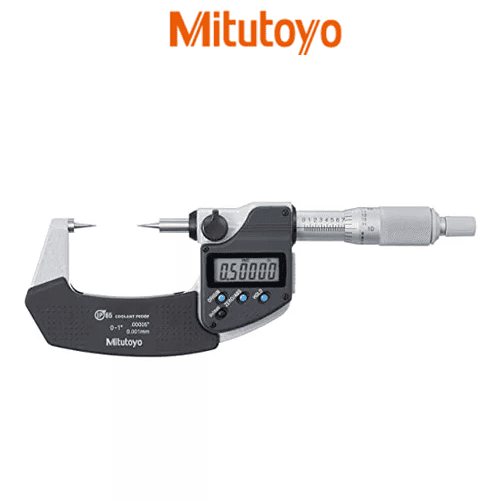

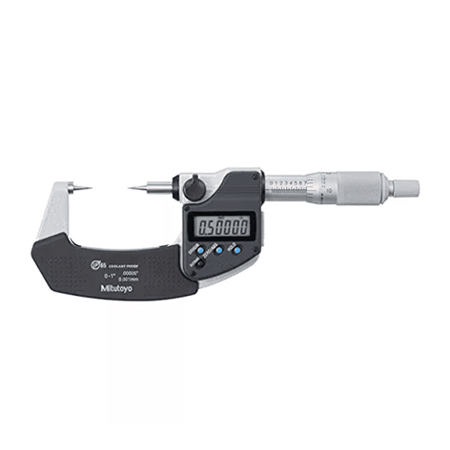

342-351-32 Mitutoyo Digimatic Point Micrometer (0 to 25.4) mm

The 342-351-32 Digimatic pointed micrometer features 15-degree pointed anvil and spline to measure small grooves on parts or workpieces along with keyways and web thicknesses on drills with superior accuracy.

The pointed anvil and spindle contacts are ideal at measuring small, hard-to-reach areas which a normal or reduce-diameter spindle and anvil are unable to access.

A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements. Measurements are displayed on an easy-to-read LCD readout.

It comes with a one-year manufacturer’s warranty.
Shop for 342-351-32 Digital Micrometer at MRM Metrology, and save.
Buy 342-351-32 Micrometer now for the best price.

Email us for the lowest price.
Click on [email protected] to request a quotation.

Other Models

SKU: 342-351-32 Category:

Product Description

  • Features
  • Specifications

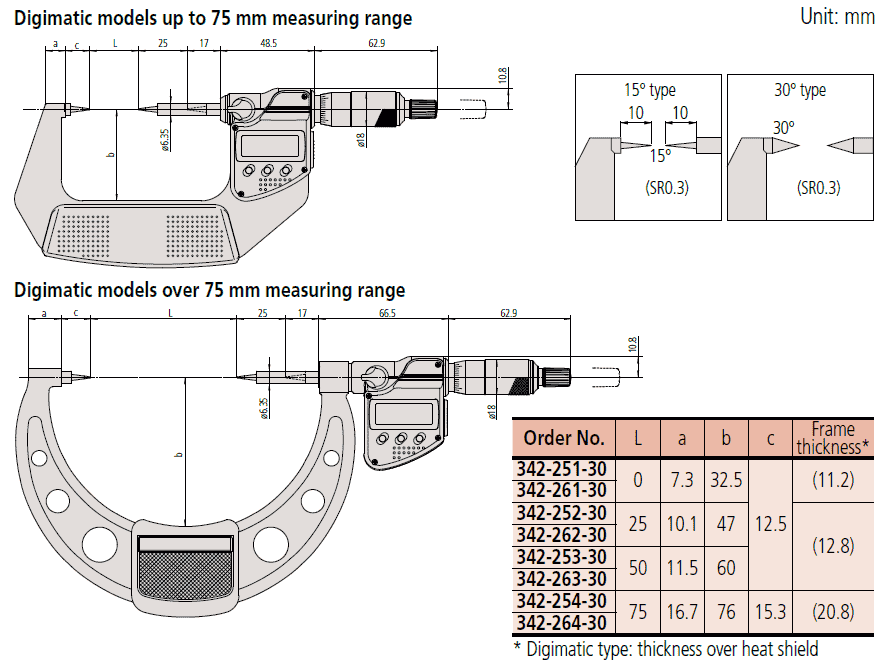

  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Pointed spindle and anvil for measuring the web thickness of drills, small grooves, keyways, and other hard-to-reach dimensions
○ The measuring points (carbide tipped) have approximately 0.3 mm radius
○ Measuring faces: Carbide tipped
○ IP65 water/dust protection
○ Equipped with Ratchet Stop for constant measuring force

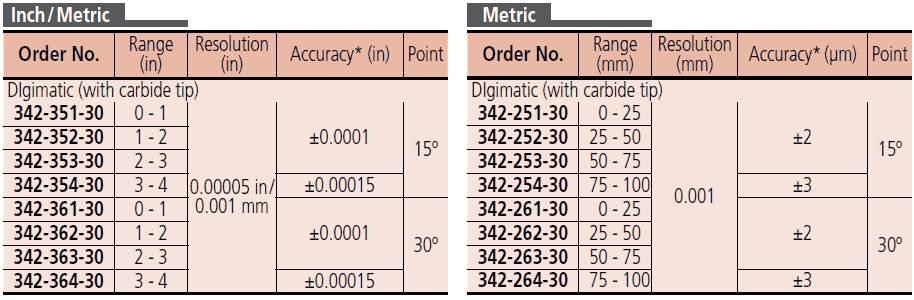

Range (0 to 25.4) mm , (0 to 1)”
Resolution 0.001 mm , 0.00005″
Accuracy ± 0.0001″
Point 15°
Unit of Measurement Metric , Inch
IP Protection IP65
Warranty One-year limited manufacturer’s warranty
Replacement 342-351-32 replaces 342-351-30


Included
938882 SR44 battery (1 pc.)
Optional
Order No. Type Description
264-020 – USB Input Tool Series
USB Keyboard Signal
Conversion Type IT-020U
264-622 IP67 U-WAVE-TM
264-623 Buzzer U-WAVE-TM
264-626 IP67 U-WAVE-TMB
264-627 Buzzer U-WAVE-TMB
05CZA662 B Connection cable (1 m)
05CZA663 B Connection cable (2 m)
06AFM380B B USB Input Tool Direct (2 m)
02AZD730G IP67 U-WAVE-T
02AZD880G Buzzer U-WAVE-T
02AZE200 – U-WAVE-T mounting bracket
02AZD790B B Connection cable for U-WAVE-T (160 mm)
02AZE140B B Connection cable for U-WAVE-T For foot switch
02AZF310 IP67 Connecting unit for U-WAVE-TM/TMB

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 342-351-32 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
342-351-32

For a quote, please email us at  [email protected]
