| ○ Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant pre-set force |
| ○ SPC output function allows for quick and easy data management in real time |
| ○ Zero-setting standards bar for each range is included |
| ○ Functions include Origin Set, Zero/ABS, Hold, Function Lock, Data Output |
| ○ Alarm: Low Voltage, Counting Value Composition Error |
| ○ Zero-setting standards bar for each range is included |
| ○ Scale is laser etched on thimble for quick and easy reading |
| ○ Carbide facing on the spindle resists wear to keep surfaces flatter with longer accuracy |
| ○ Speeder is always available for quick rotation of the spindle |
| ○ Supplied in fitted plastic case |
| Range | (600 to 700) mm |
| Resolution | 0.001 mm |
| Accuracy | ±3µm |
| Flatness | 1µm |
| Parallelism | 9µm or less |
| Measuring Force | (10 to 14) N |
| Mass | 6.35 kg |
| Ratchet/Thimble | Ratchet Stop |
| Measuring Faces | Carbide tipped (spindle only) |
| Display | LCD |
| SPC Output | Yes |
| Manufacturer’s Warranty | 1 year limited manufacturer’s warranty |
| INCLUDED ITEMS | |
| Battery (938882) | SR44 (1 pc) |
| Battery Life | Approx. 1.8 years under normal use |
| OPTIONAL ITEMS | |
| 959149 | SPC cable Straight type (1m / 40”) |
| 959150 | SPC cable Straight type (2m / 80”) |
| 04AZB512 | SPC cable L-type (1m / 40”) |
| 04AZB513 | SPC cable L-type (2m / 80”) |
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

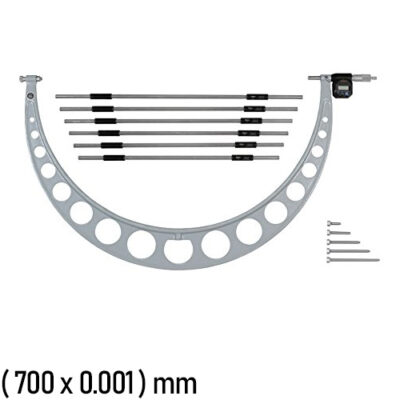

340-523 Mitutoyo Micrometer, Interchangeable Anvils
For a quote, please email us at [email protected]
