Product Description
- Features
- Specifications
- Dimensions
- Accessories
- Downloads
- Calibration
| ○ Supplied with a flat anvil and rod anvil |
| ○ Special lapped disc anvils (optional). The Uni-Mike can be used as a height micrometer |
| ○ Carbide tips resists wear on the measuring faces for accurate measurements for an extended period of time |
| ○ SPC output function allows for quick and easy data management in real time |
| ○ Functions include Origin Set, Zero/ABS Setting, Data Hold, Data Output, Function Lock and inch/mm conversion |
| ○ Alarm: Low Voltage, Counting Value Composition Error |
| ○ IP65 protection permits use in environments exposed to cutting oil, dust, etc.** |
| ○ Supplied in fitted plastic case |
**Anti-corrosion treatment is required after use
| Range | (0 to 25.4) mm / (0 to 1)” |
| Resolution | 0.001 mm / 0.00005″ |
| Accuracy | ± 0.00015″ |
| Mass | 340 g |
| SPC Output | Yes |
| Ratchet/Thimble | Friction Thimble |
| Display | LCD |
| Graduation | 0.01 mm / 0.0010″ |
| Parallelism | 3µm or less / 0.00012″ or less |
| Measuring Faces | Carbide tipped (spindle only) |
| Display | LCD |
| Manufacturer’s Warranty | 1 year limited manufacturer’s warranty |
| INCLUDED ITEMS | |
| Battery (938882) | SR44 (1 pc) |
| Battery Life | Approx. 2.4 years under normal use |
| OPTIONAL ITEMS | |
| 05CZA662 | SPC cable with data switch (1m/40”) |
| 05CZA663 | SPC cable with data switch (2m/80”) |
| 201218 | V-anvil |
| 201217 | Rod Anvil |
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

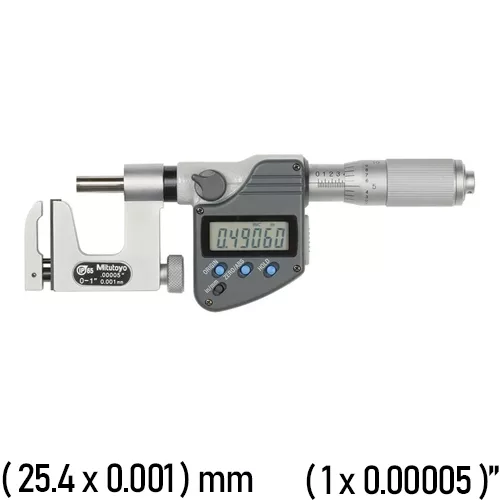

317-351-30 Mitutoyo Uni-Mike Micrometer
For a quote, please email us at [email protected]
