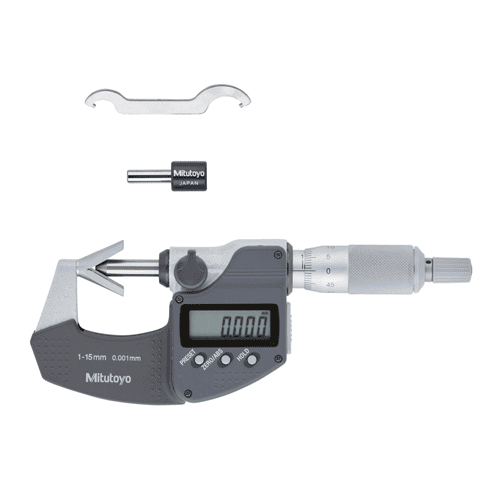

314-261-32 Mitutoyo V-Anvil Micrometer, (1 to 15) mm

CAD 875.00

The 314-261-32 Digimatic V-Anvil digital micrometer pointed spindle and V-Anvil delivers precise position for highly accurate measurements. The anvil and spindle are precision milled from hardened steel for lasting, accurate results. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements. Measurements are displayed on an easy-to-read LCD readout.

It comes with a one-year manufacturer’s warranty.
Shop for 314-261-32 V-Anvil Micrometer at MRM Metrology, and save.
Buy 314-261-32 Digimatic Micrometer now for the best price.

Email us for the lowest price.
Click on [email protected] to request a quotation.

SPC

Other Models

SKU: 314-261-32 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ V-Anvils with a centerline groove are available for measuring the pitch diameter of taps by the single-wire method
○ Ratchet mechanism provides an audible click to ensure measurement is being performed with a constant force
○ SPC output function allows for quick and easy data management in real time
○ Functions include Origin Set, Zero/ABS Setting, Data Hold, Data Output, 2 Presets, Function Lock
○ Alarm: Low Voltage, Counting Value Composition Error
○ Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
○ Frame has a non-slip finish for better grip in shop environments
○ Supplied in fitted plastic case

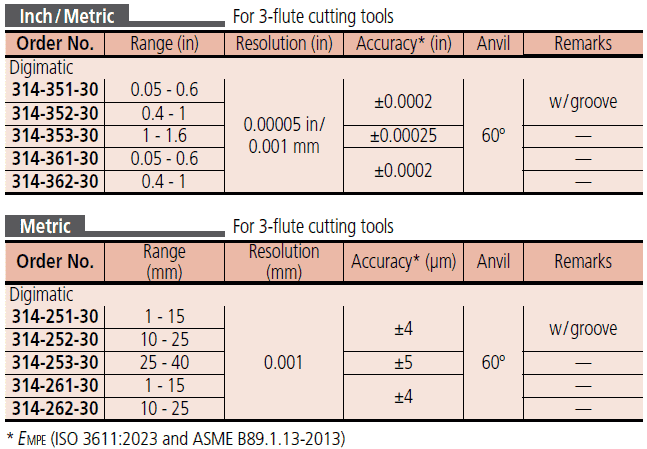

Range (1 to 15) mm
Resolution 0.001 mm
Accuracy ± 4 µm
Remarks 3-Flute
Mass 275 g
Mechanism Ratchet Stop
Measuring Faces Carbide tipped (spindle only)
Display LCD
Manufacturer’s Warranty One-year limited manufacturer’s warranty
Replacement 314-261-32 replaces 314-261-30


Included
Battery (938882) SR44 (1 pc)
Battery Life 2.4 years under normal use
Optional
05CZA662 SPC cable with data switch (1m , 40”)
05CZA663 SPC cable with data switch (2m , 80”)

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 314-261-32 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
314-261-32 Mitutoyo V-Anvil Micrometer

For a quote, please email us at  [email protected]
