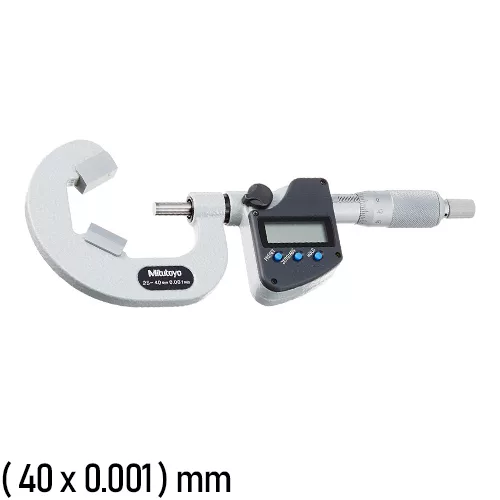

314-253-30 Mitutoyo V-Anvil Micrometer, 40mm

The 314-253-30 Digimatic V-Anvil digital micrometer pointed spindle and V-Anvil delivers precise position for highly accurate measurements. The anvil and spindle are precision milled from hardened steel for lasting, accurate results. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements. Measurements are displayed on an easy-to-read LCD readout.

It comes with a one-year manufacturer’s warranty.
Shop for 314-253-30 Micrometer at MRM Metrology, and save.
Buy 314-253-30 now for the best price in Canada.

Email us for the lowest price.
Click on [email protected] to request a quotation.

SPC
Other Models

SKU: 314-253-30 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ V-Anvils with a centerline groove are available for measuring the pitch diameter of taps by the single-wire method
○ Ratchet mechanism provides an audible click to ensure measurement is being performed with a constant force
○ SPC output function allows for quick and easy data management in real time
○ Functions include Origin Set, Zero/ABS Setting, Data Hold, Data Output, 2 Presets, Function Lock
○ Alarm: Low Voltage, Counting Value Composition Error
○ Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
○ Frame has a non-slip finish for better grip in shop environments
○ Supplied in fitted plastic case

Range (25 to 40) mm
Resolution 0.001 mm
Accuracy ± 5µm
Remarks 3-Flute
Graduation 0.01 mm
Mass 465 g
Ratchet/Thimble Ratchet Stop
Measuring Faces Carbide tipped (spindle only)
Display LCD
Manufacturer’s Warranty 1 year limited manufacturer’s warranty


INCLUDED ITEMS
Battery (938882) SR44 (1 pc)
Battery Life 2.4 years under normal use
OPTIONAL ITEMS
05CZA662 SPC cable with data switch (1m / 40”)
05CZA663 SPC cable with data switch (2m / 80”)

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 314-253-30 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
314-253-30 Mitutoyo V-Anvil Micrometer

For a quote, please email us at  [email protected]
