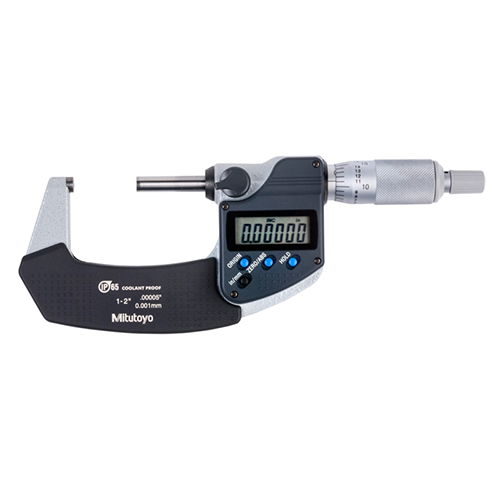

293-341-32 Mitutoyo Digimatic Micrometer (25.4 to 50.8) mm , (1 to 2)”

Original price was: CAD 400.00.Current price is: CAD 319.00.

The 293-341-32 Digimatic Coolant-Proof Micrometer features ratchet stop thimble mechanism which provides a constant measuring force on the spindle to ensure accurate, repeatable measurements.

The combination of the ratchet thimble and speeder enables a rapid spindle feed when measuring widely different dimensions. As well as easier one-handed measurements. It is IP65 rated.

Made in Japan and comes with a one-year limited manufacturer’s warranty.
Shop for 293-341-32 Digital Micrometer at MRM Metrology, and save.
Buy 293-341-32 Coolant-Proof Micrometer now for the best price.

Email us for the lowest price.
Click on [email protected] to request a quotation.


Other Models

SKU: 293-341-32 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Accurate and highly environmentally resistant, assisting with many types of measurements
○ Ratchet thimble provides better operability for one-handed operation
○ Oil-resistant material used for all plastic parts
○ Equipped with a Digimatic output port can form part of a statistical process control or networked measurement system
○ Measuring faces: Carbide tipped
○ IP65 protection permits use in environments exposed to cutting oil, dust, etc.

Range (25.4 to 50.8) mm , (1 to 2)”
Resolution 0.001 mm , 0.00005″
Accuracy ± 0.00005″
Measuring Force (5 to 10) N
Flatness 0.000012″
Parallelism 0.00004″
Type Ratchet Thimble
Mass 330 g
Display LCD
SPC Output No
IP Rating IP65
Warranty One year limited manufacturer’s warranty
Replacement 293-341-32 replaces 293-341-30


INCLUDED
Battery (938882) SR44 (1 pc)
OPTIONAL
Optical Parallels
Optical Flats
Micrometer Standards
3-Wire Thread Measuring System
Color-Coded Ratchets and Speeder Covers
Micrometer Stands
264-020 USB Input Tool Series
USB Keyboard Signal
Conversion Type IT-020U
05CZA662 Connection cable (1 m) – Type B
05CZA663 Connection cable (2 m) – Type B
06AFM380B USB Input Tool Direct (2 m) – Type B
02AZD730G U-WAVE-T – Type IP67
02AZD880G U-WAVE-T – Type Buzzer
02AZE200 U-WAVE-T mounting bracket
02AZD790B Connection cable for U-WAVE-T (160 mm) – Type B
02AZE140B Connection cable for U-WAVE-T for Foot Switch – Type B
264-622 U-WAVE-TM – Type IP67
264-623 U-WAVE-TM – Type Buzzer
264-626 U-WAVE-TMB – Type IP67
264-627 U-WAVE-TMB – Type Buzzer
02AZF310 Connecting unit for U-WAVE-TM/TMB – Type IP67

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 293-341-32 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
293-341-32 Mitutoyo Digimatic Micrometer

For a quote, please email us at  [email protected]
