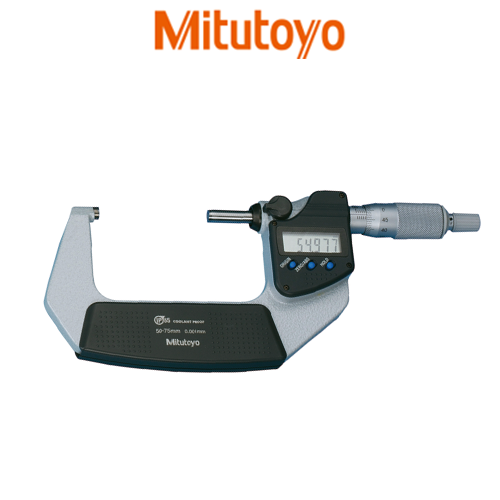

293-242-30 Mitutoyo Digimatic Micrometer

293-242-30 Mitutoyo Digimatic Micrometer, (50 to 75) mm

DISCONTINUED   ** Replaced with 293-242-32 **

The 293-242-30 Digimatic Micrometer IP65 rated coolant-proof features ratchet stop thimble mechanism which provides a constant measuring force on the spindle to ensure accurate, repeatable measurements. The combination of the ratchet thimble and speeder enables a rapid spindle feed when measuring widely different dimensions, as well as, easier one-handed measurements. Coolant Proof Micrometers MDC-MX Series.

It comes with a one-year manufacturer’s warranty.
Shop for 293-242-30 Digital Micrometer at MRM Metrology, and save.
Buy 293-242-30 Micrometer now for the best price in Canada.

Email us for the lowest price.
Click on [email protected] to request a quotation.

Other Models
SKU: 293-242-30 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Measurement data output is available with a water-resistant connection cable
○ Frame is coated with an anti-slip finish for improved grip during use
○ Twice as long battery life than previous models improves throughput and efficiency
○ Auto power ON/OFF function saves battery life and allows for easier use
○ Supplied in a plastic, fitted case
○ Includes a standard bar
○ IP65 protection permits use in environments exposed to cutting oil, dust, etc

Range (50 to 75) mm
Resolution 0.001 mm
Accuracy ± 2 µm
SPC Output No
Ratchet/Thimble Ratchet Stop
Mass 470 gr
Measuring Force (5 to 10) N
Flatness 0.3 µm
Parallelism 2 µm or less
Measuring Faces Carbide tip
Display LCD
IP Rating IP65
Warranty One year limited manufacturer’s warranty

Brochure

VIDEOS


Included Items
Battery (938882) SR44 (1 pc)
Battery Life Approx. 2.4 years under normal use
Optional Items
05CZA662 SPC cable with data switch (1 m / 40”)
05CZA663 SPC cable with data switch (2 m / 80”)

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 293-242-30 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
293-242-30 Mitutoyo Digimatic Micrometer

For a quote, please email us at  [email protected]
