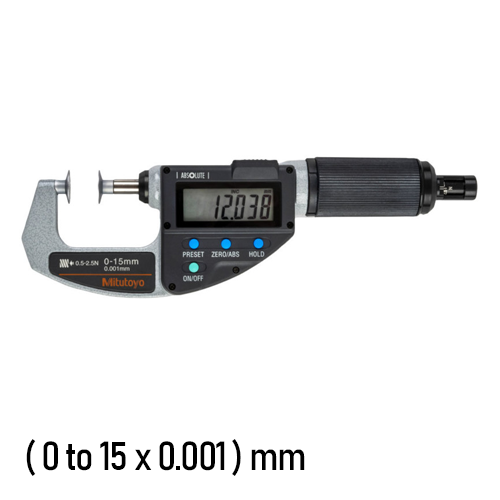

227-221-20 Mitutoyo Absolute Disk Micrometer

The 227-221-20 ABSOLUTE Quickmike disc micrometer uses flat discs constructed of hardened steel, in our own Japanese factory, to measure lengths of spur and helical gears. The non-rotating spindle prevents workpiece deformation and wear by reducing torque on parts being measured. The flatness and thinness of the discs allow for reliable measurements in tight spaces. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements and eliminates over-speed error.

It comes with one year limited manufacturer’s warranty.
Shop for 227-221-20 at MRM Metrology and use CAL 227-221-20 when ordering calibration services.

SPC
Absolute
SKU: 227-221-20 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Quickmike type disc micrometer has a 20 times faster feed rate and spindle speed at 10mm/revolution
○ ABSOLUTE linear scale eliminates the need for setting the origin point every time the micrometer is powered on
○ Elimination of overspeed errors provides higher measurement reliability and repeatability
○ SPC output function allows for quick and easy data management in real time
○ Functions include Origin Set, Zero/ABS Setting, Data Hold, Data Output, Function Lock
○ Alarm: Low Voltage, Counting Value Composition Error
○ Ratchet mechanism provides an audible lick to ensure measurement is performed at a constant force
○ Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
○ Frame has a non-slip finish for better grip in shop environments
○ Supplied in fitted plastic case

Range (0 to 15) mm
Resolution 0.001 mm
Accuracy ± 4µm
Measuring Force (0.5 to 2.5)N
Flatness 1µm
Parallelism 3µm or less
Graduation 0.01 mm
Ratchet/Thimble Ratchet Stop
SPC Output Yes
Disk Diameter 14.3 ømm
Display LCD
Manufacturer’s Warranty 1 year limited manufacturer’s warranty


INCLUDED ITEMS
Battery (938882) SR44 (1 pc)
Battery Life Approx. 5 years under normal use
OPTIONAL ITEMS
05CZA662 SPC cable with data switch (1 m / 40”)
05CZA663 SPC cable with data switch (2 m / 80”)

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
227-221-20 Mitutoyo Digital Disk Micrometer

For a quote, please email us at  [email protected]
