| â—‹ These Dial Caliper Gages are used only as comparison gauges |
| â—‹ Should be used along with a Setting Ring or micrometer |
| â—‹ The caliper is spring loaded and makes point contact measuring pressure |
| â—‹ Excellent resistance against water and dust (IP65 protection level) |
| â—‹ Optimized measuring force |
| â—‹ Ergonomically designed to lie securely in your hand when measuring |
| Range | (0 to 50) mm |

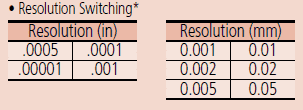

| Resolution | 0.02 mm |
| Accuracy | ±0.06 mm |
| Power Supply | 2 batteries LR3.0 (AAA) |
| Mass | 460 g |
| L | 169 mm |
-
- 011551
- Digimatic Interface Series 209 Digital Caliper Gauge
-
- 937387
- Digimatic Cable, Round 6-Pin Type 1m
-
- 965013
- Digimatic Cable, Round 6-Pin Type 2m
-
- 06AFM380E
- USB Input Tool Direct (Digimatic USB) Digi/Digi2, Round 6-Pin Type
-
- 02AZD880G
- U-WAVE-T, Buzzer Type Wireless Transmitter
-
- 02AZD730G
- U-WAVE-T, IP67 Type Wireless Transmitter
-
- 02AZD790E
- U-WAVE-T Connection Cable E Round 6-Pin Type
-
- 63AAA438
- Holder for Digital Caliper Gauge for 209-930 up to 209-958
â—‹ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
â—‹ Use CAL 209-955 when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the
209-955 Mitutoyo Digimatic Caliper Gauge
For a quote, please email us at  [email protected]
