209-948 Mitutoyo Caliper Gauge

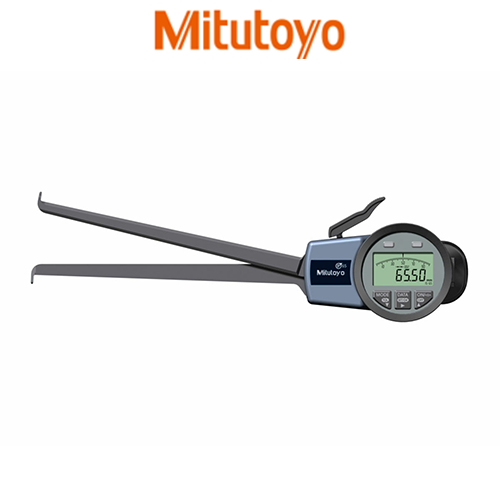

209-948 Mitutoyo Digimatic Caliper Gauge (70 to 100) mm

The 209-948 Digimatic Caliper Gauge is used as a comparison gauge and should be used along with a Setting Ring or micrometer.
The caliper is spring-loaded and makes point contact at constant measuring pressure.

It comes with a one-year manufacturer’s warranty.
Shop for 209-948 Digimatic Caliper Gauge at MRM Metrology, and save.
Buy 209-948 Caliper Gauge now for the best price.

Email us for the lowest price.
Click on [email protected] to request a quotation.

Other Models

SKU: 209-948 Category:

Product Description

  • Features
  • Specifications
  • Dimension
  • Accessories
  • Downloads
  • Calibration

○ Signal can be output to external device; waterproof data output connector protects against dust, water and oil ingress
○ ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
○ Origin reset is not required even when data is re-displayed after disappearance due to insufficient illumination during use
○ SPC output function allows for quick and easy data management in real time
○ Functions include: Zero-setting, preset, data hold, data output, Max/Min value holding, auto power off, and inch/mm conversion
○ Alarm: Low voltage, scale surface contamination and over-flow error
○ Unlimited response speed eliminates over-speed errors
○ IP67 protection eliminates dust ingress, protects against temporary water submersion; permits use in environments exposed to cutting oil, dust, etc.

Range (70 to 100) mm

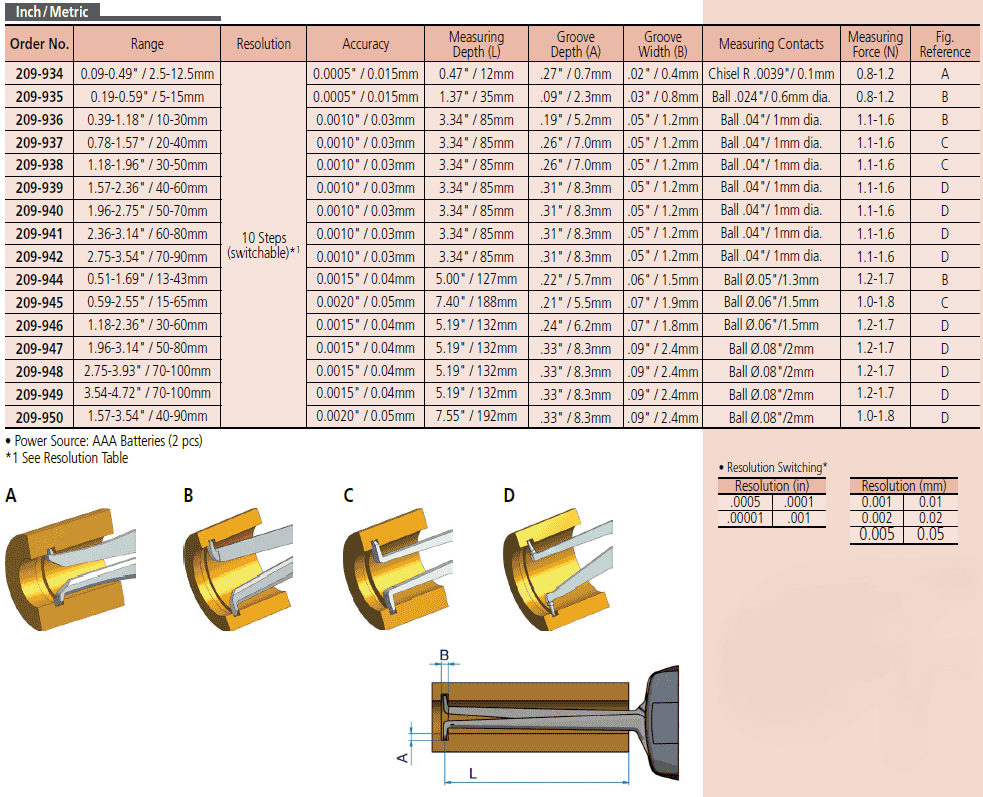

Resolution 10 Steps (switchable) – see chart below
Accuracy 0.04 mm
Power Supply 2.0 LR3.0 batteries (AAA)


Mass 380 g

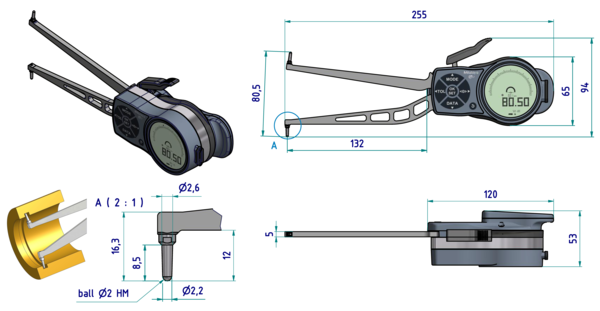

L 132 mm
A 8.3 mm
B 2.4 mm

    • 011551
    • Digimatic Interface Series 209 Digital Caliper Gauge
    • 937387
    • Digimatic Cable, Round 6-Pin Type 1m
    • 965013
    • Digimatic Cable, Round 6-Pin Type 2m
    • 06AFM380E
    • USB Input Tool Direct (Digimatic USB) Digi/Digi2, Round 6-Pin Type
    • 02AZD880G
    • U-WAVE-T, Buzzer Type Wireless Transmitter
    • 02AZD730G
    • U-WAVE-T, IP67 Type Wireless Transmitter
    • 02AZD790E
    • U-WAVE-T Connection Cable E Round 6-Pin Type
    • 63AAA438
    • Holder for Digital Caliper Gauge for 209-930 up to 209-958

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 209-948 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
209-948 Mitutoyo Digimatic Caliper Gauge

For a quote, please email us at  [email protected]
