209-946 Mitutoyo Caliper Gauge

209-946 Mitutoyo Digimatic Caliper Gauge (30 to 60) mm

The 209-946 Digimatic Caliper Gauge is used only as comparison gauges and should be used along with a Setting Ring or micrometer. The caliper is spring-loaded and makes point contact at constant measuring pressure.

It comes with a one-year manufacturer’s warranty.
Shop for 209-946 Digimatic Caliper Gauge at MRM Metrology, and save.
Buy 209-946 Caliper Gauge now for the best price.

Email us for the lowest price.
Click on [email protected] to request a quotation.

Other Models

SKU: 209-946 Category:

Product Description

  • Features
  • Specifications

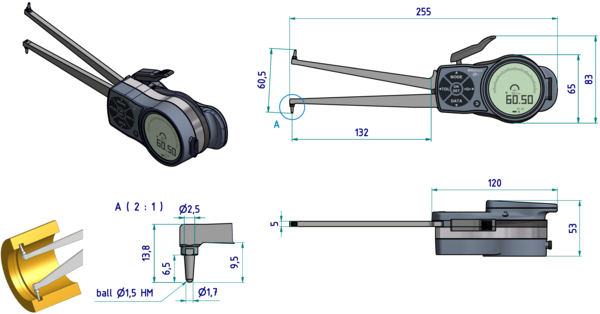

  • Dimension
  • Accessories
  • Downloads
  • Calibration

○ These Dial Caliper Gages are used only as comparison gauges
○ Should be used along with a Setting Ring or micrometer
○ The caliper is spring loaded and makes point contact measuring pressure
○ Excellent resistance against water and dust (IP65 protection level)
○ Optimized measuring force
○ Ergonomically designed to lie securely in your hand when measuring

Range (30 to 60) mm
Resolution 10 Steps (switchable) – see chart below
Accuracy 0.04 mm
Power Supply 2.0 batteries LR3.0 (AAA)

MRM-L330


Mass 370 g
L 132 mm
A 6.2 mm
B 1.8 mm

    • 011551
    • Digimatic Interface Series 209 Digital Caliper Gauge
    • 937387
    • Digimatic Cable, Round 6-Pin Type 1m
    • 965013
    • Digimatic Cable, Round 6-Pin Type 2m
    • 06AFM380E
    • USB Input Tool Direct (Digimatic USB) Digi/Digi2, Round 6-Pin Type
    • 02AZD880G
    • U-WAVE-T, Buzzer Type Wireless Transmitter
    • 02AZD730G
    • U-WAVE-T, IP67 Type Wireless Transmitter
    • 02AZD790E
    • U-WAVE-T Connection Cable E Round 6-Pin Type
    • 63AAA438
    • Holder for Digital Caliper Gauge for 209-930 up to 209-958

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 209-946 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
209-946 Mitutoyo Digimatic Caliper Gauge

For a quote, please email us at  [email protected]
